How to Make Ambulance/Police Car Light With Arduino



Today, I will show you how to make Ambulance/Police Car Light With Arduino!

*** List Parts ***

- Arduino Nano (Or any board Arduino)

https://www.banggood.com/custlink/3GvEL7wuVK

- LED 5mm 5VDC

https://www.banggood.com/custlink/3GvEL7wuVK

- Breadboard mini

https://www.banggood.com/custlink/3GvEL7wuVK

- Jumper Wires

https://www.banggood.com/custlink/3GvEL7wuVK

- Soldering

https://www.banggood.com/custlink/3GvEL7wuVK

- Wire Reel Solder

https://www.banggood.com/custlink/3GvEL7wuVK

- Hot glue gun

https://www.banggood.com/custlink/3GvEL7wuVK

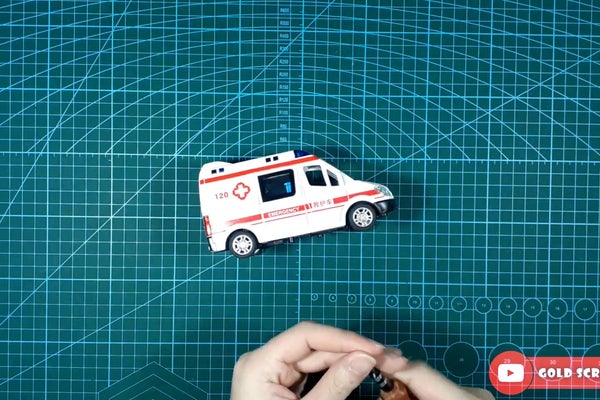

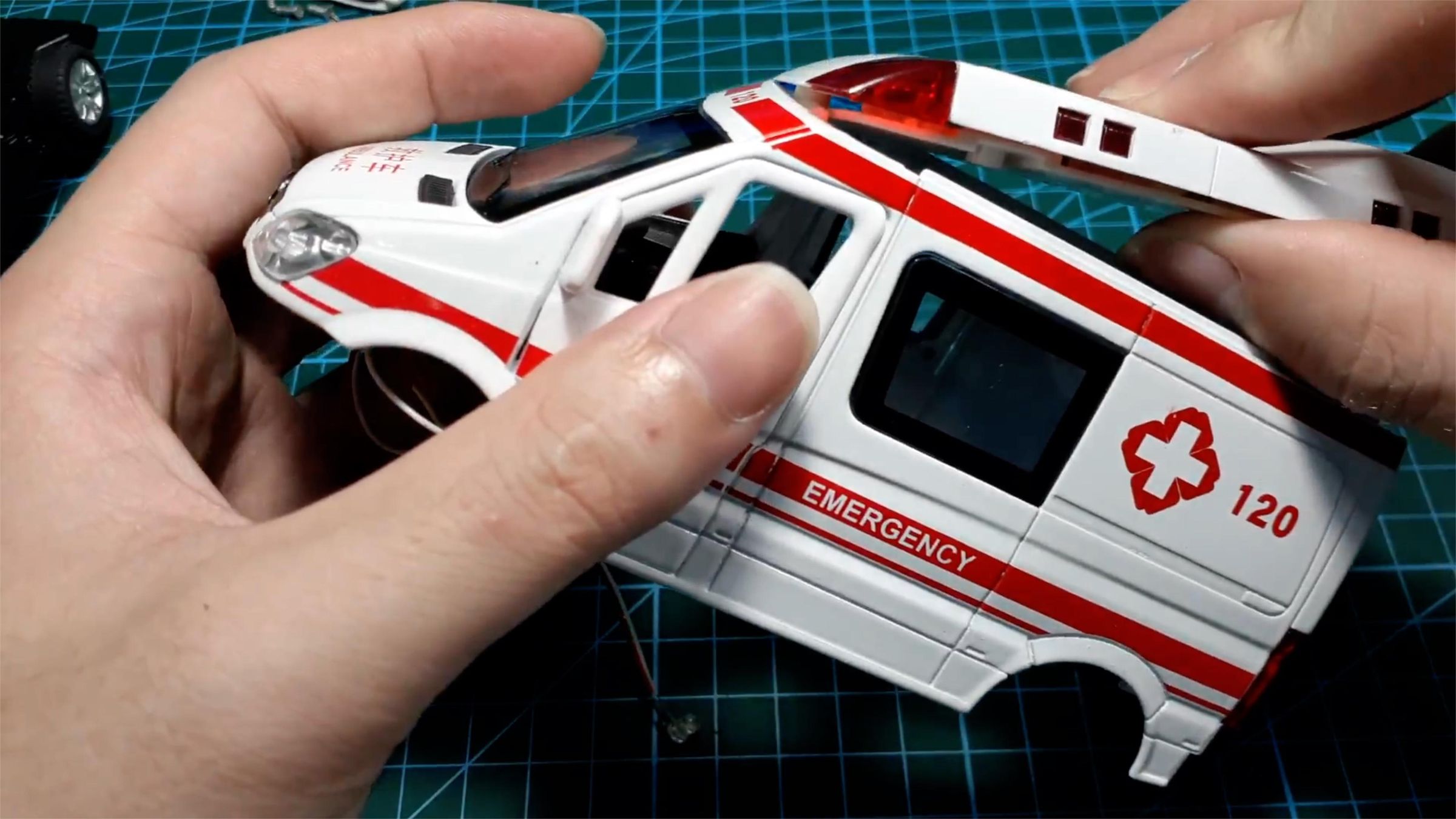

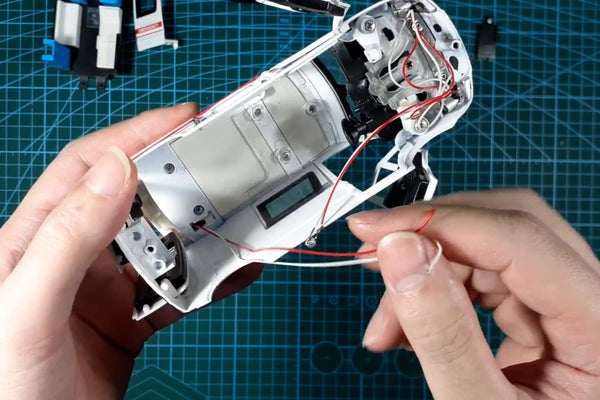

Step 1: Disassemble the Car

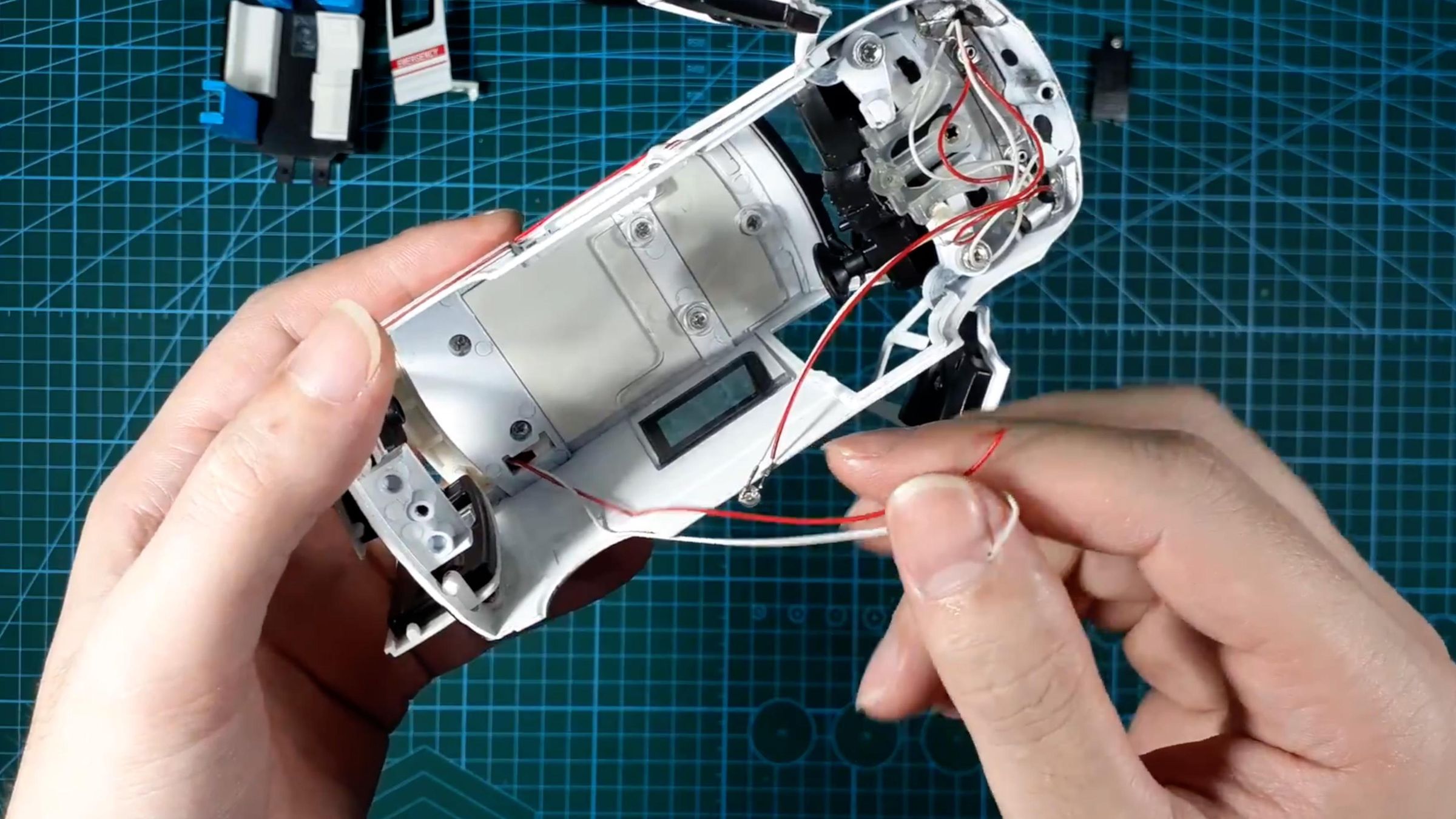

I will disassemble the current car to check the status, the existing LED system

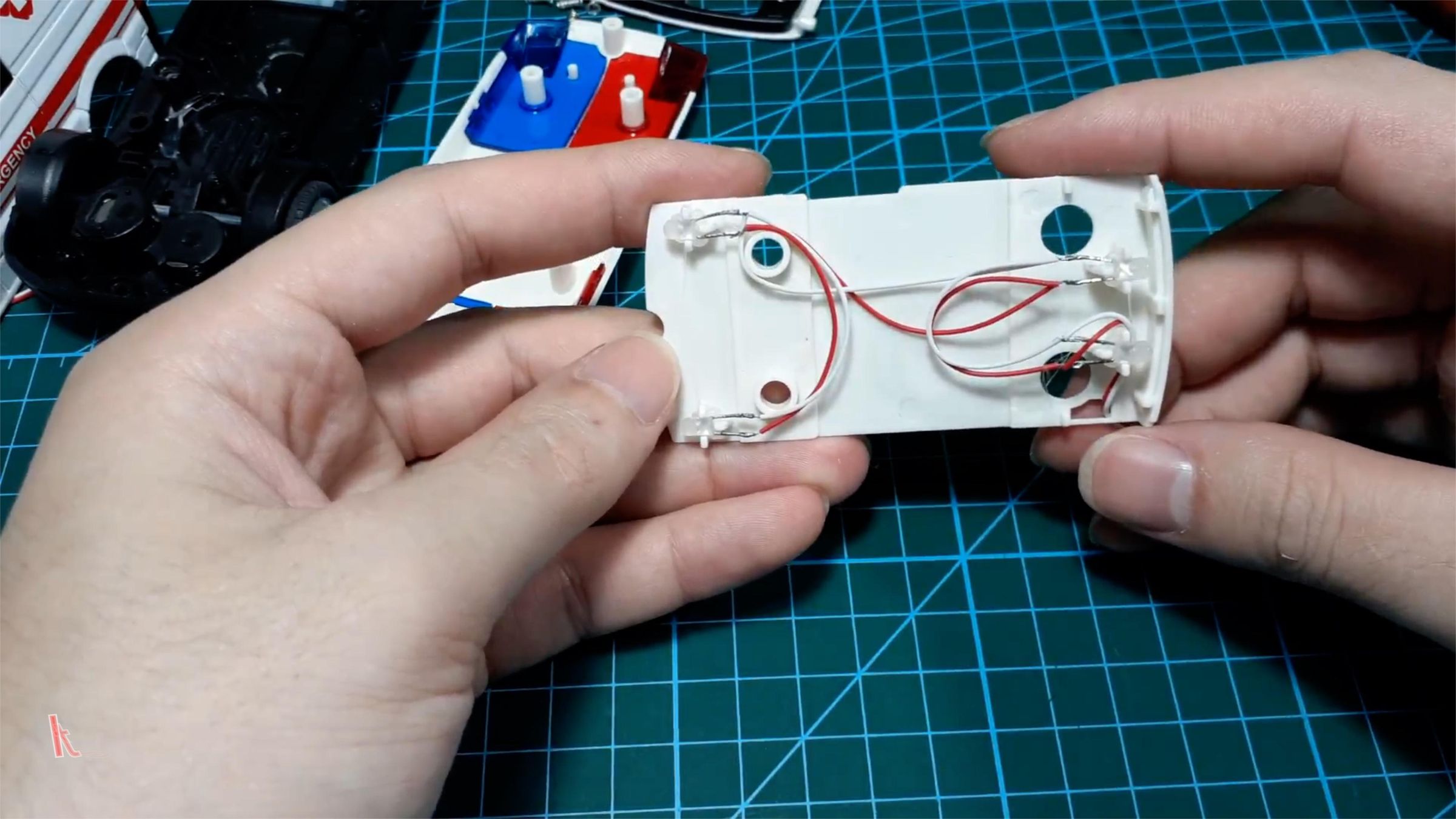

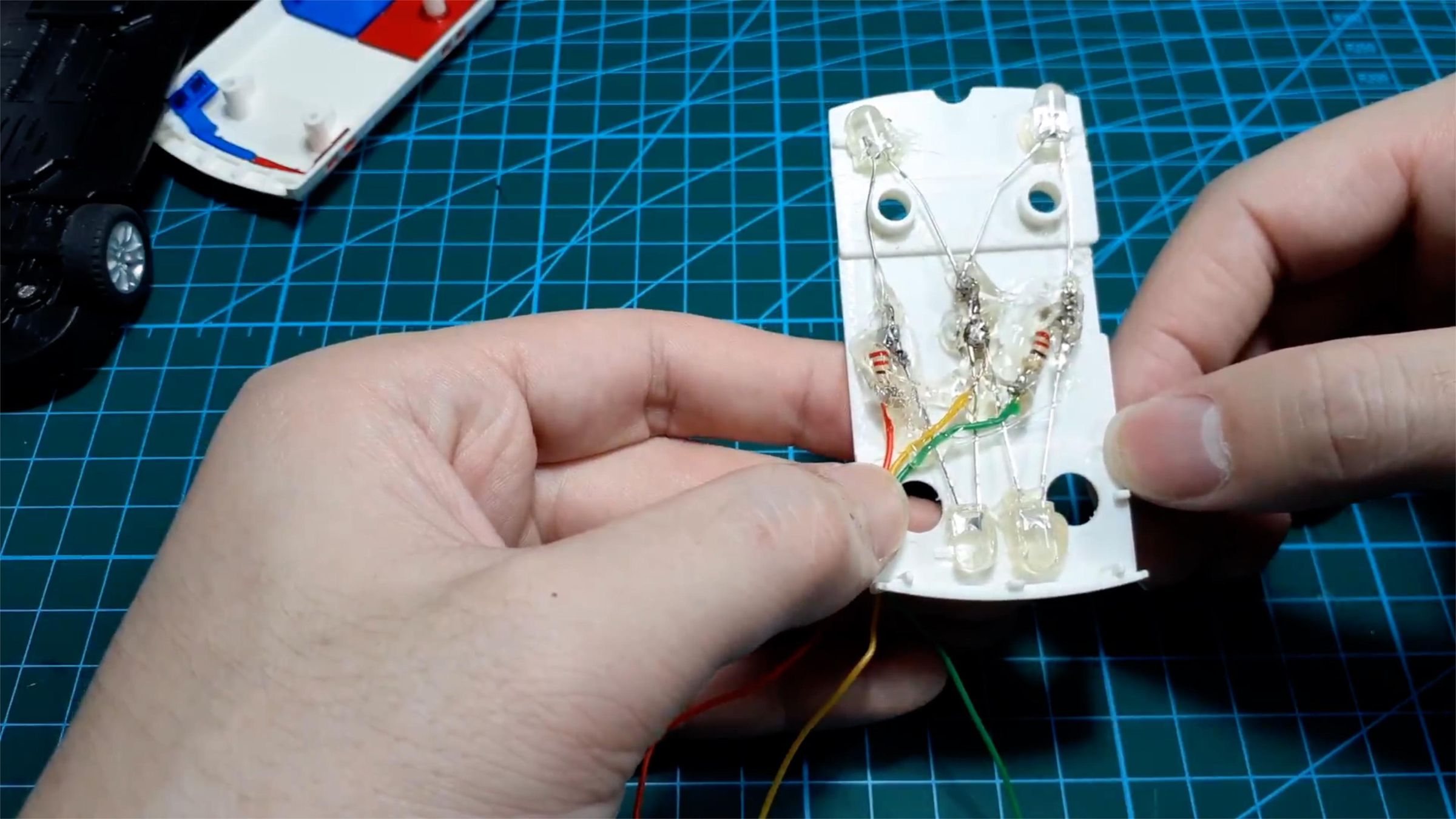

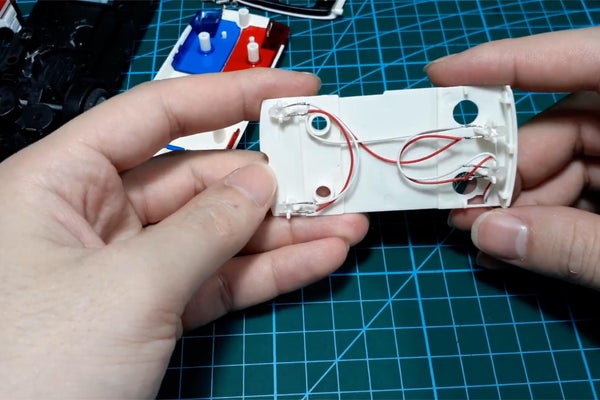

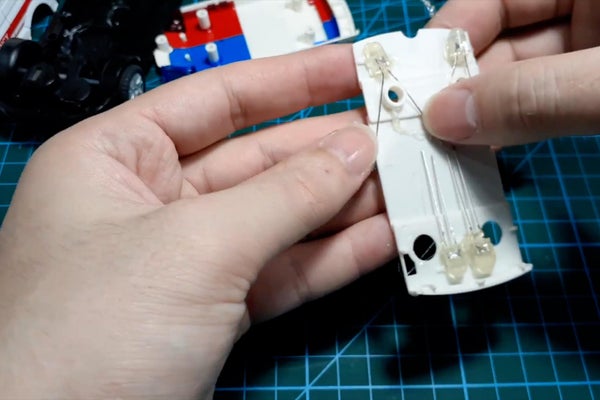

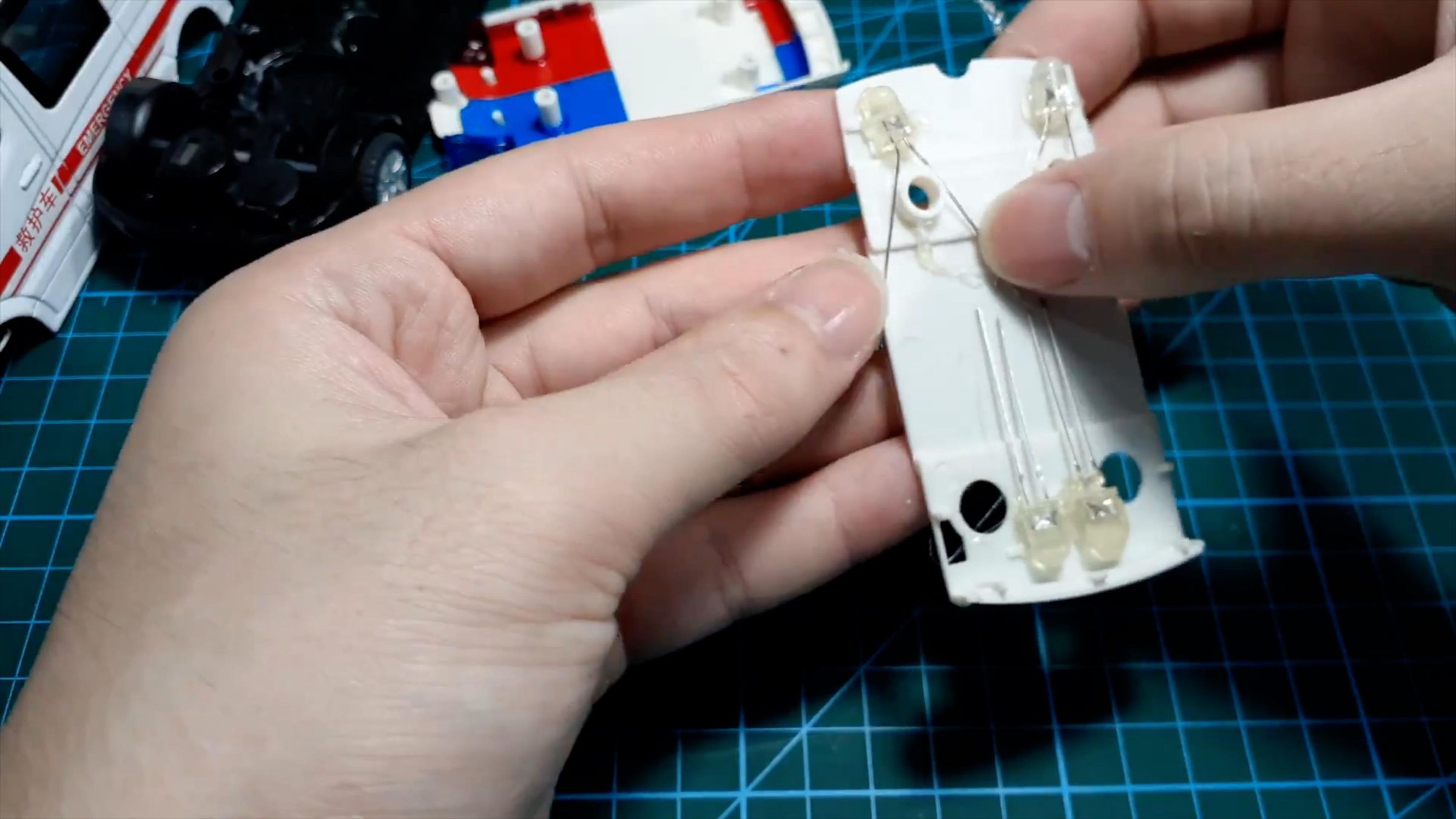

Step 2: Replace the Old LED System LED

Replace old 3mm LED system with 5mm LED (bigger, brighter)

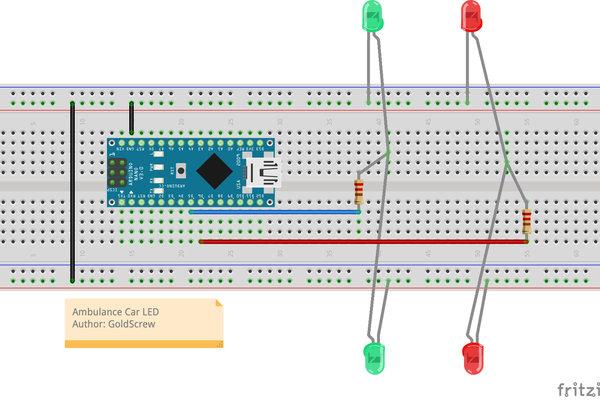

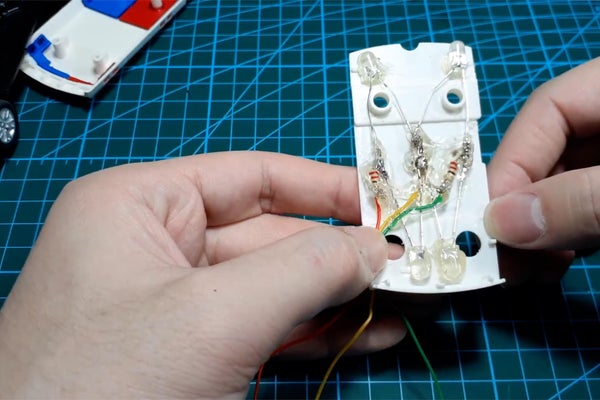

Step 3: Connecting the Electrical System

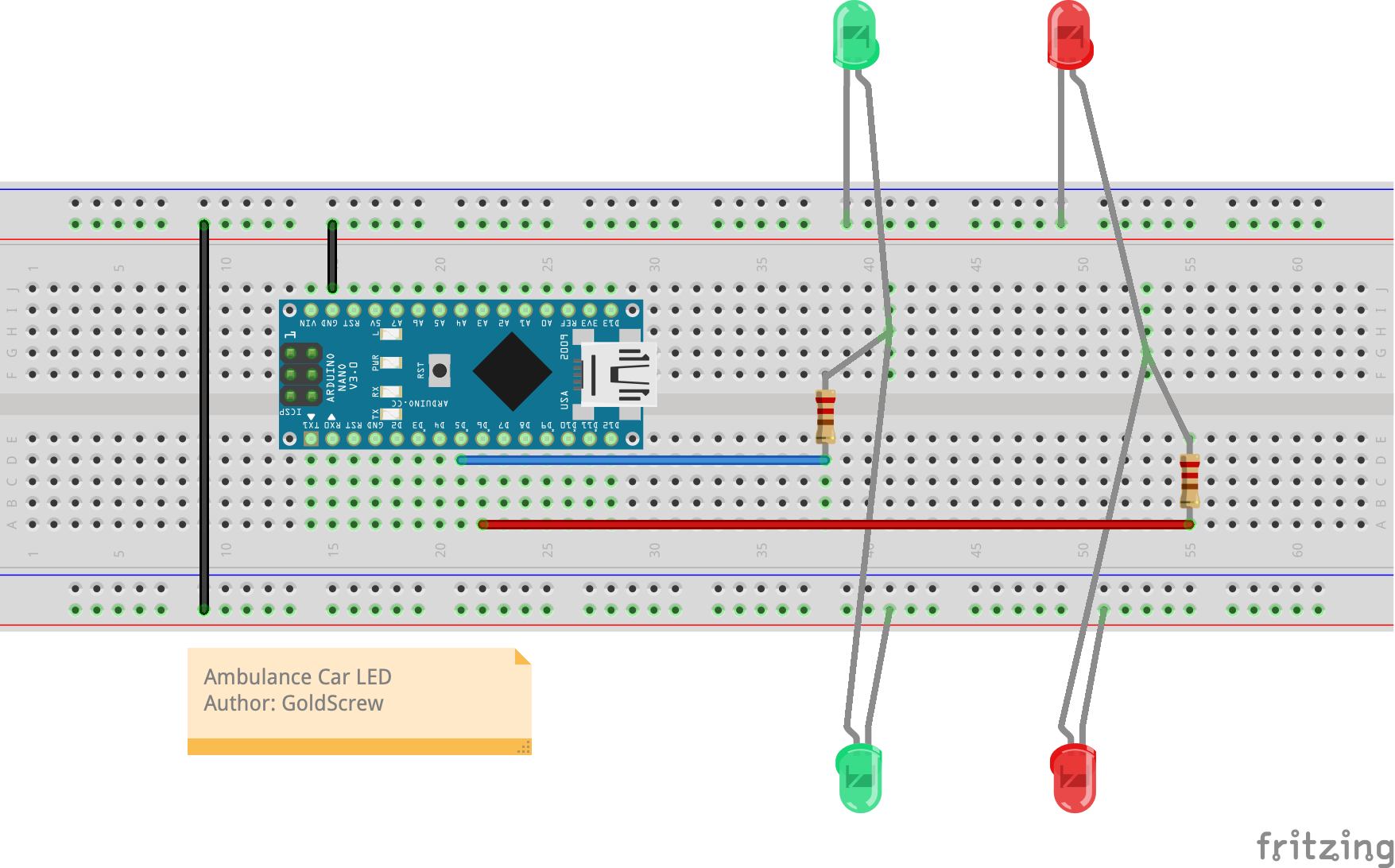

Connect the electrical system according to the circuit diagram in the picture

Step 4: Reassemble

Reassemble the car as it was

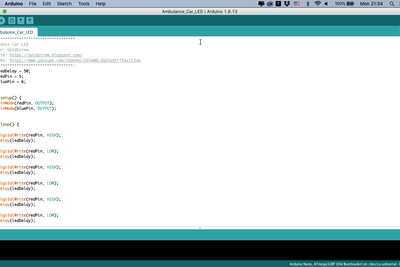

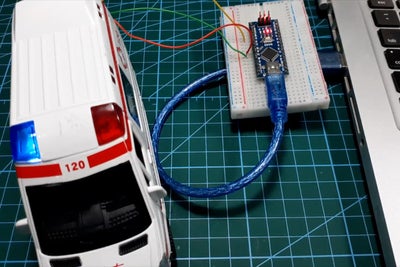

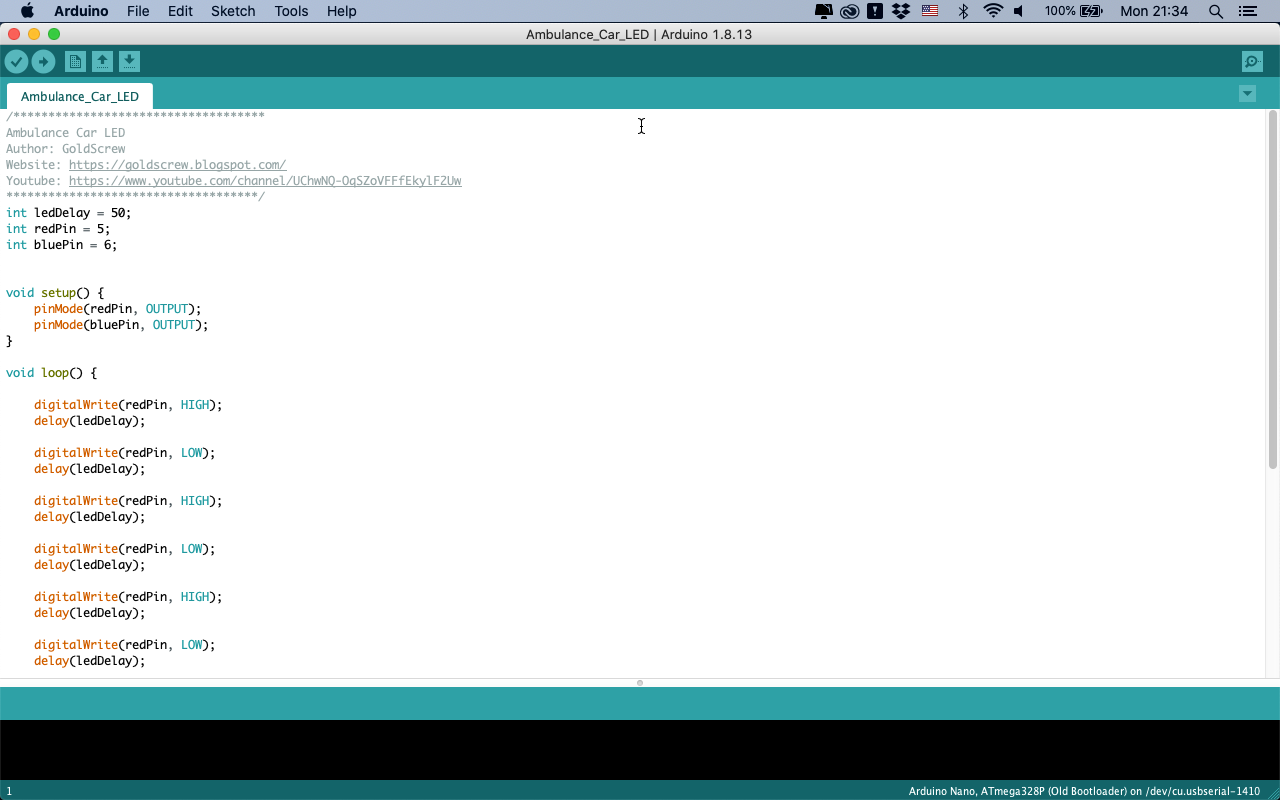

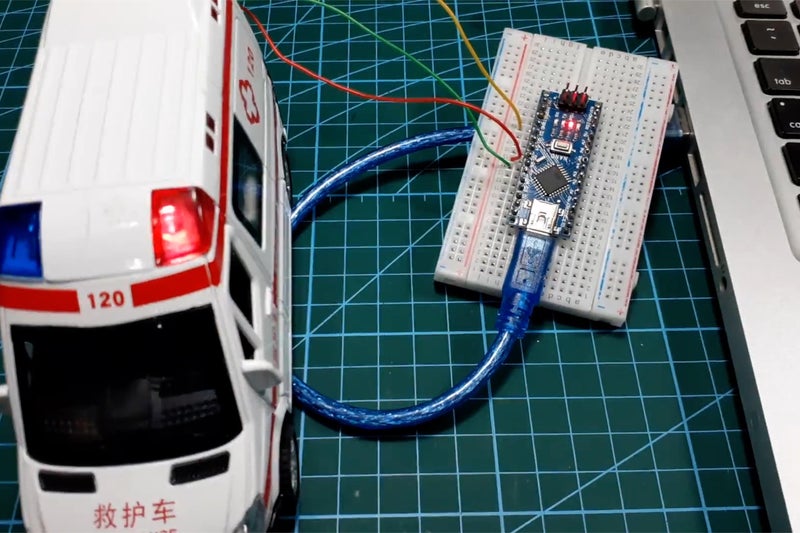

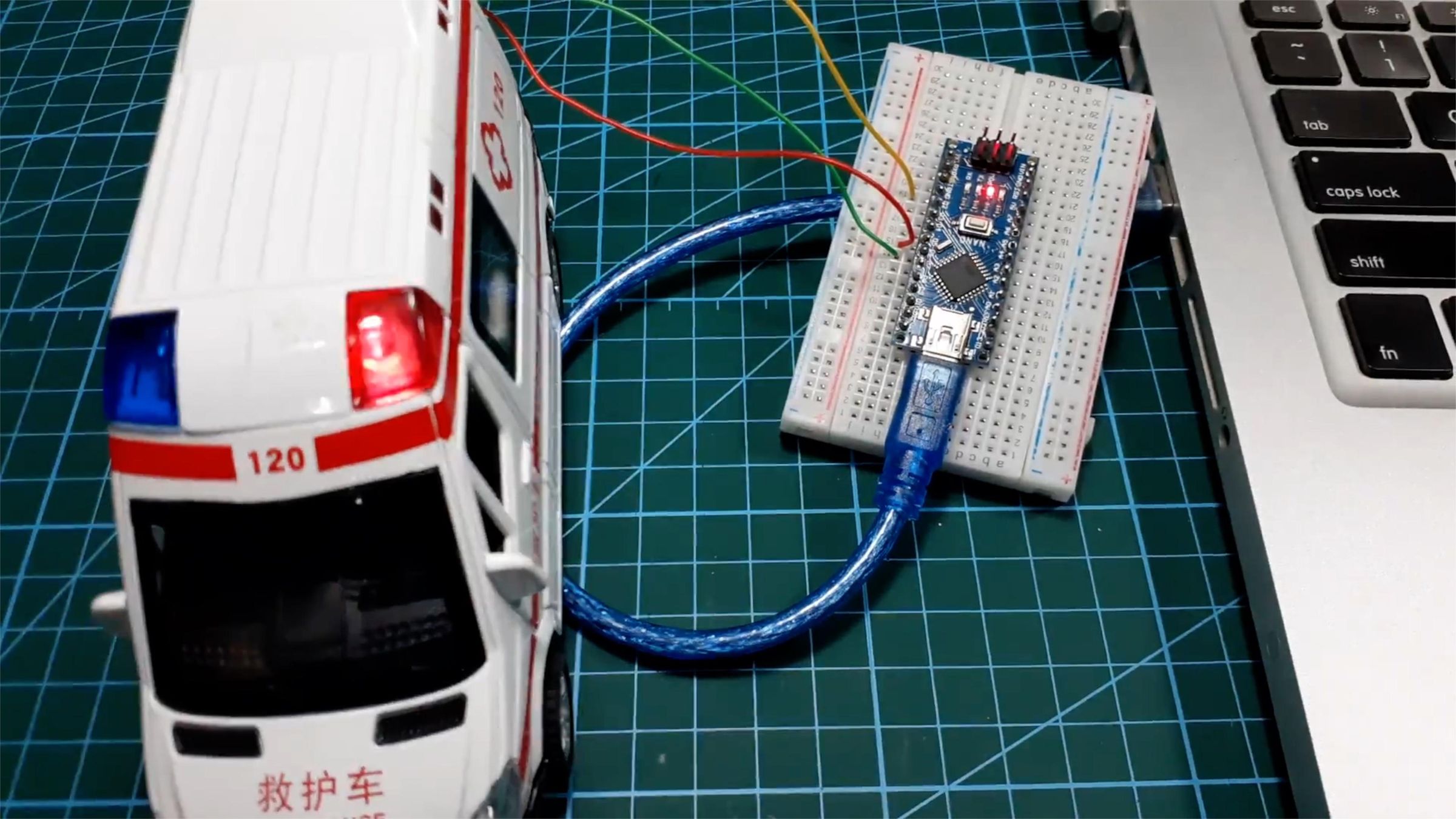

Step 5: Programming and Running Tests

Upload the program for the Arduino board and run it.

/************************************

Ambulance Car LED

Author: GoldScrew

Website: https://goldscrew.blogspot.com/

Youtube: https://www.youtube.com/channel/UChwNQ-OqSZoVFFfEkylF2Uw

************************************/

int ledDelay = 50;

int redPin = 5;

int bluePin = 6;

void setup() {

    pinMode(redPin, OUTPUT);

    pinMode(bluePin, OUTPUT);

}

void loop() {

    digitalWrite(redPin, HIGH);

    delay(ledDelay);



    digitalWrite(redPin, LOW);

    delay(ledDelay);



    digitalWrite(redPin, HIGH);

    delay(ledDelay);



    digitalWrite(redPin, LOW);

    delay(ledDelay);



    digitalWrite(redPin, HIGH);

    delay(ledDelay);



    digitalWrite(redPin, LOW);

    delay(ledDelay);



    delay(100);



    digitalWrite(bluePin, HIGH);

    delay(ledDelay);



    digitalWrite(bluePin, LOW);

    delay(ledDelay);



    digitalWrite(bluePin, HIGH);

    delay(ledDelay);



    digitalWrite(bluePin, LOW);

    delay(ledDelay);



    digitalWrite(bluePin, HIGH);

    delay(ledDelay);



    digitalWrite(bluePin, LOW);

    delay(ledDelay);

}

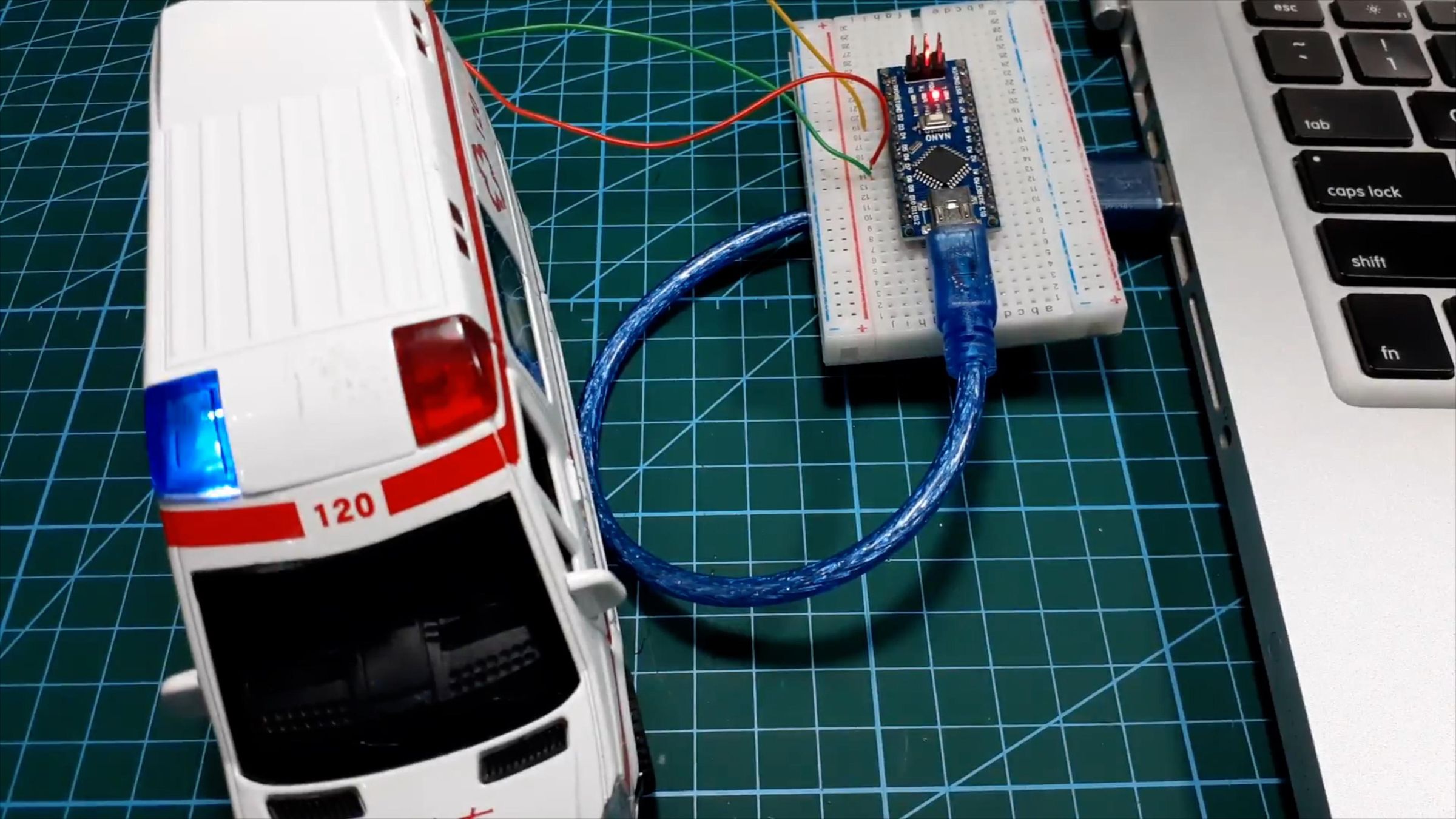

The two green and red lights will flash alternately.

So it's success!
