Make the Best Mini Power Supply With XYS3580 Module

 A voltage regulator power supply is a very useful device for those who love to make and DIY electronic devices.

You can use it to test electronic components: LEDs, motors, sensors...

Therefore, today I will share with everyone how to make a multi-function power supply with module XYS3580.

Supplies

Necessary Parts:

- XYS3580:

https://sea.banggood.com/custlink/vDKynT7wyk

- DC input Jack (5.5 x 2.1mm)

https://sea.banggood.com/custlink/DmGygNJFyL

- DC Switch

https://www.banggood.com/custlink/KGvRBymWVI

- Wiring

https://sea.banggood.com/custlink/3GDy4bpPdr

- 3D printed box (*.STL files) | My Design

https://www.thingiverse.com/thing:5325084

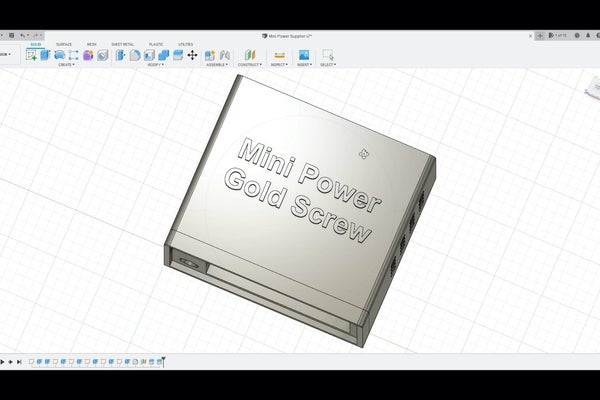

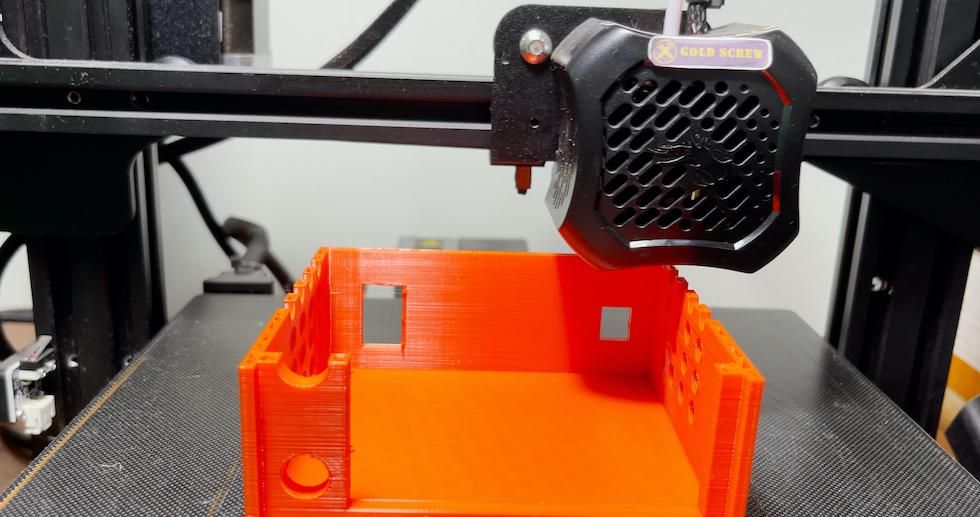

Step 1: 3D Design & Print

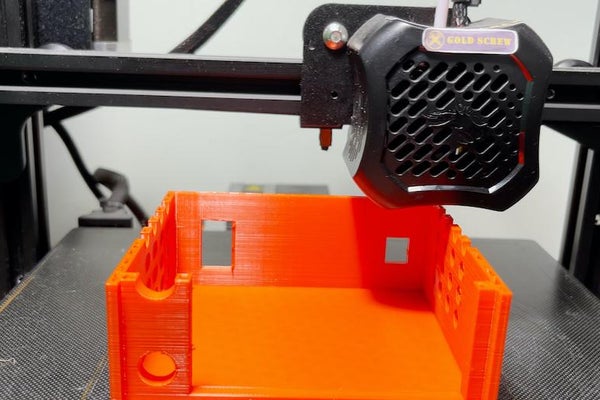

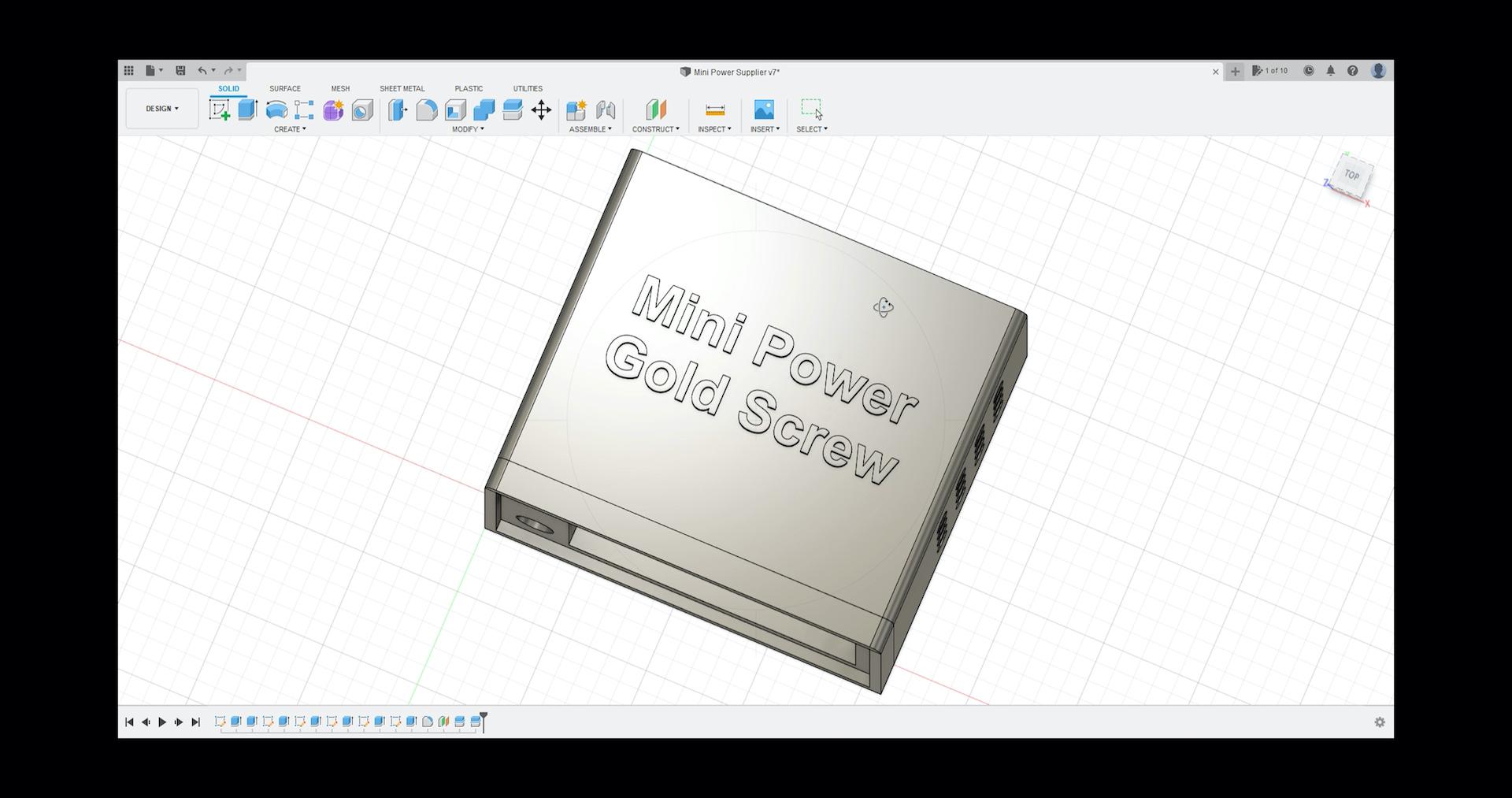

I'm design the box with Fusion 360, and then print it with 3D Printer (Ender 3 V2 Pro)

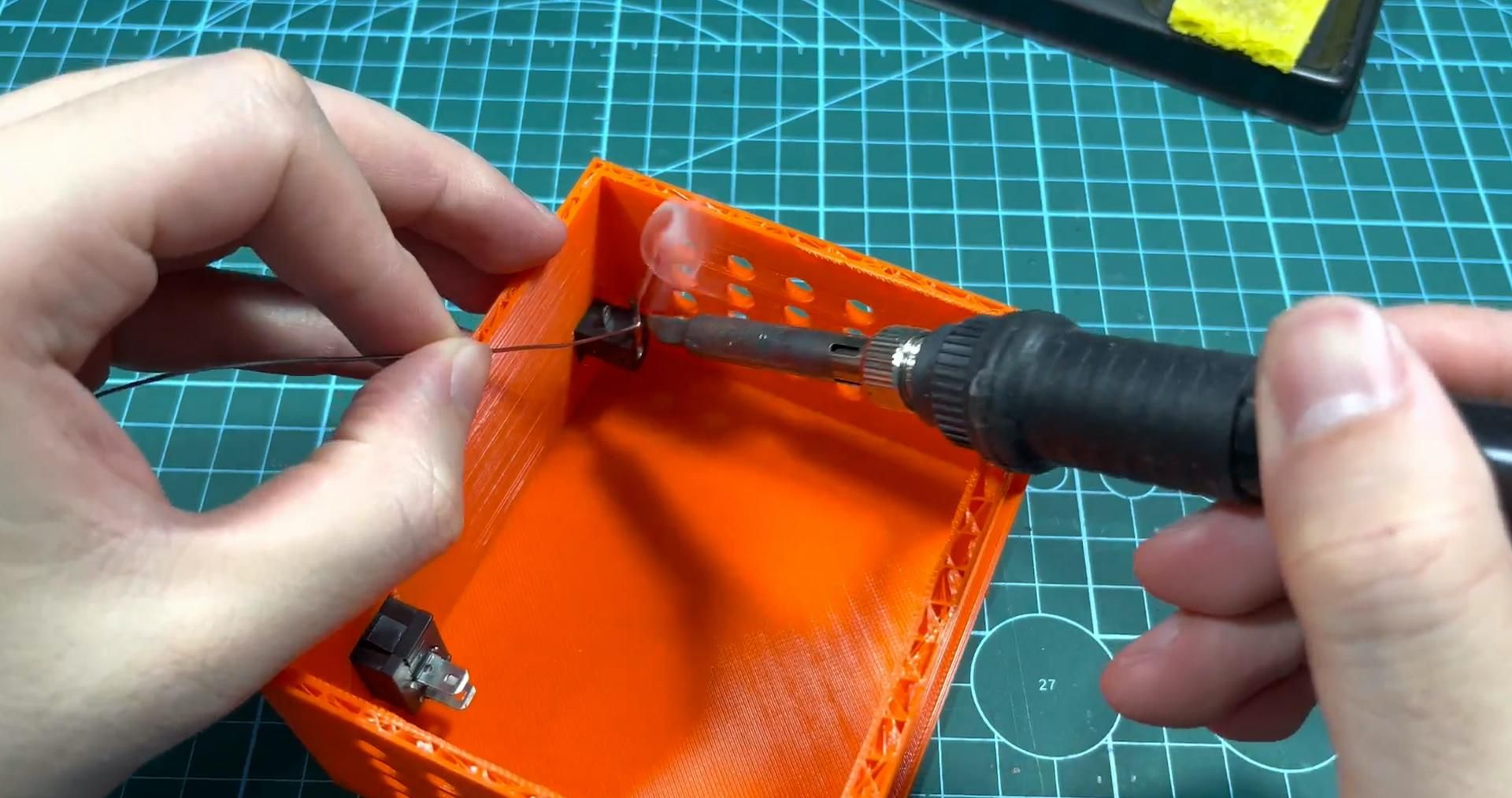

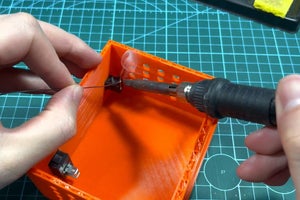

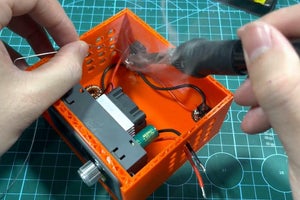

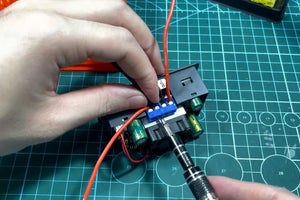

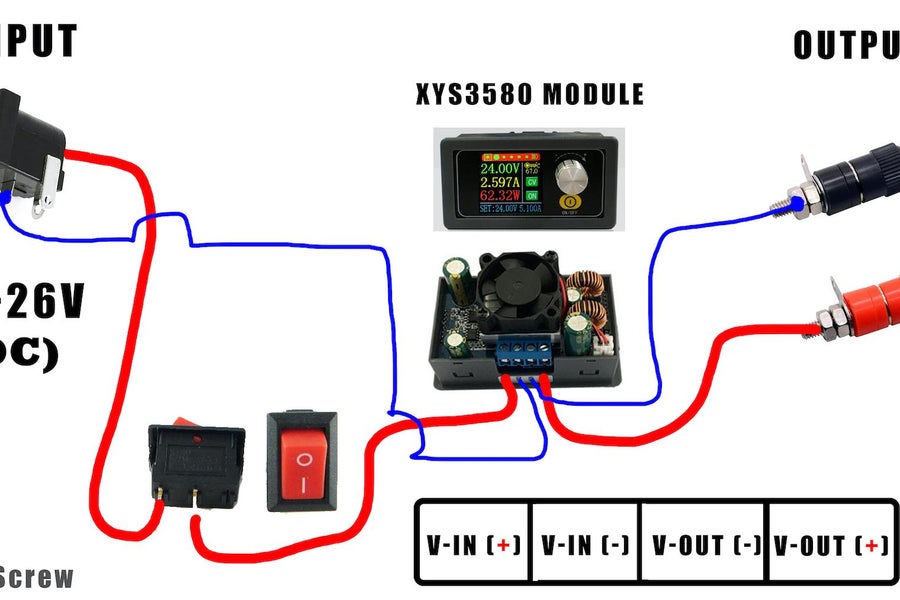

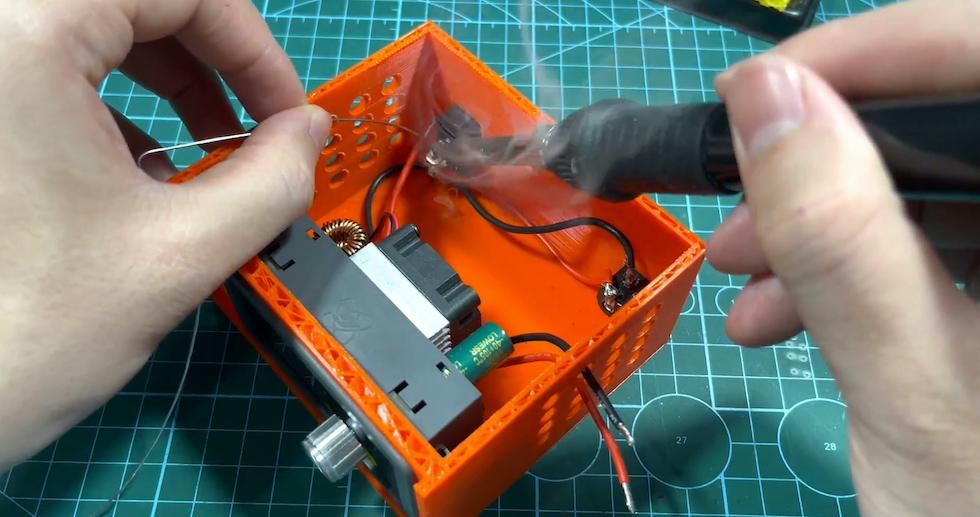

Step 2: Assembly All the Parts

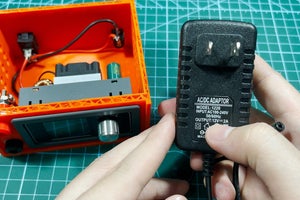

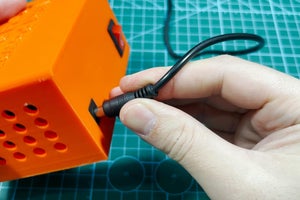

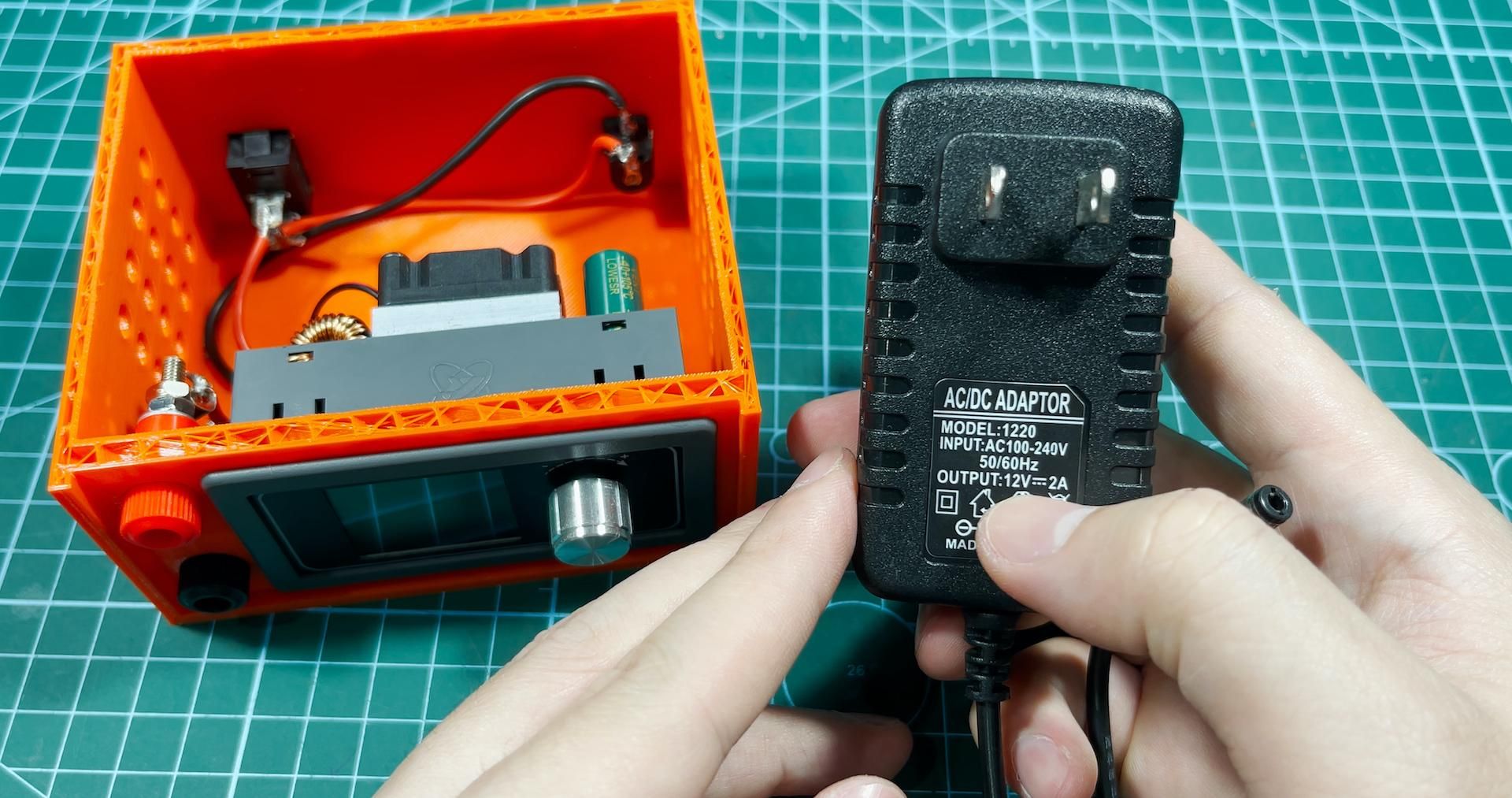

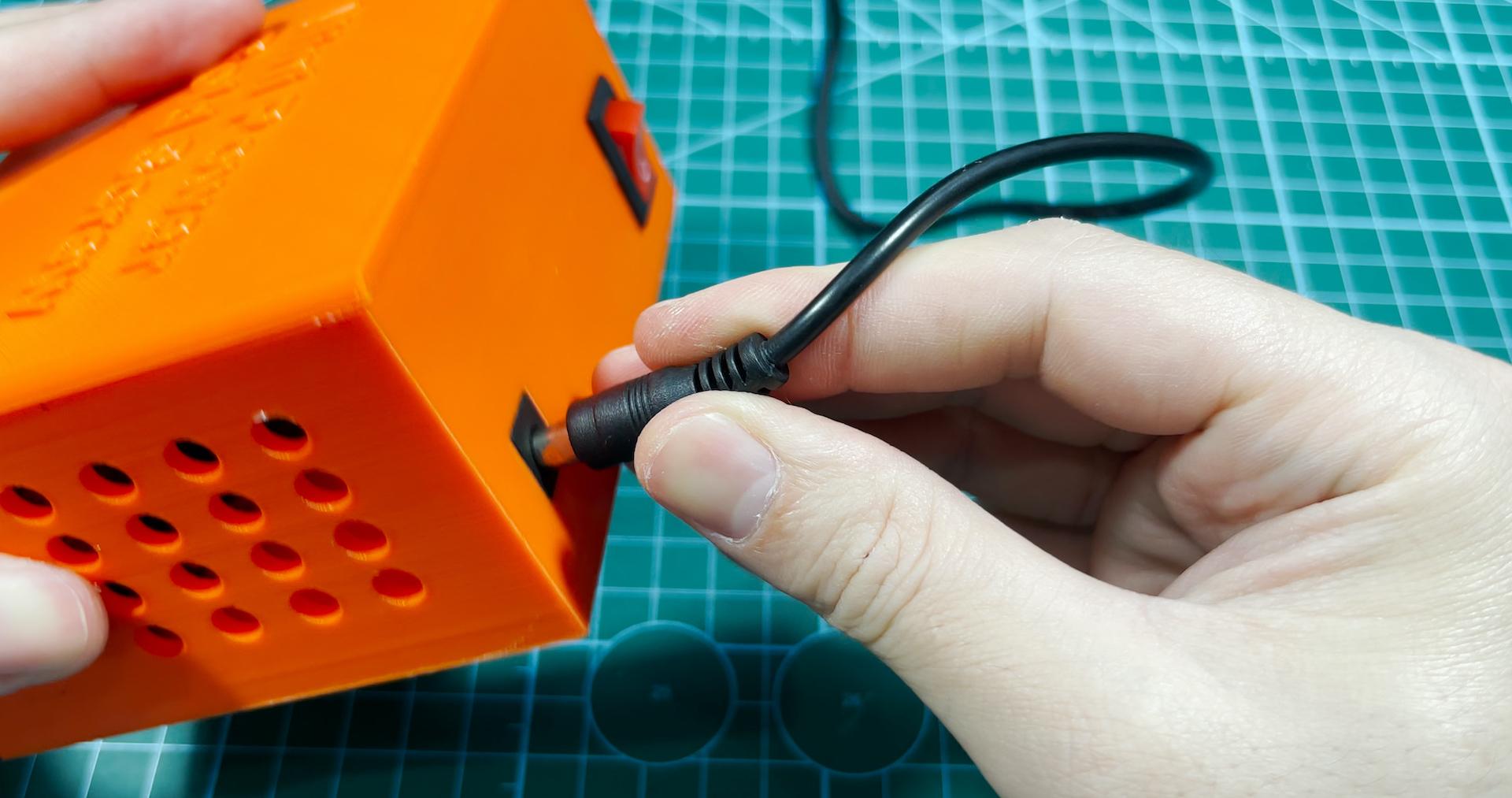

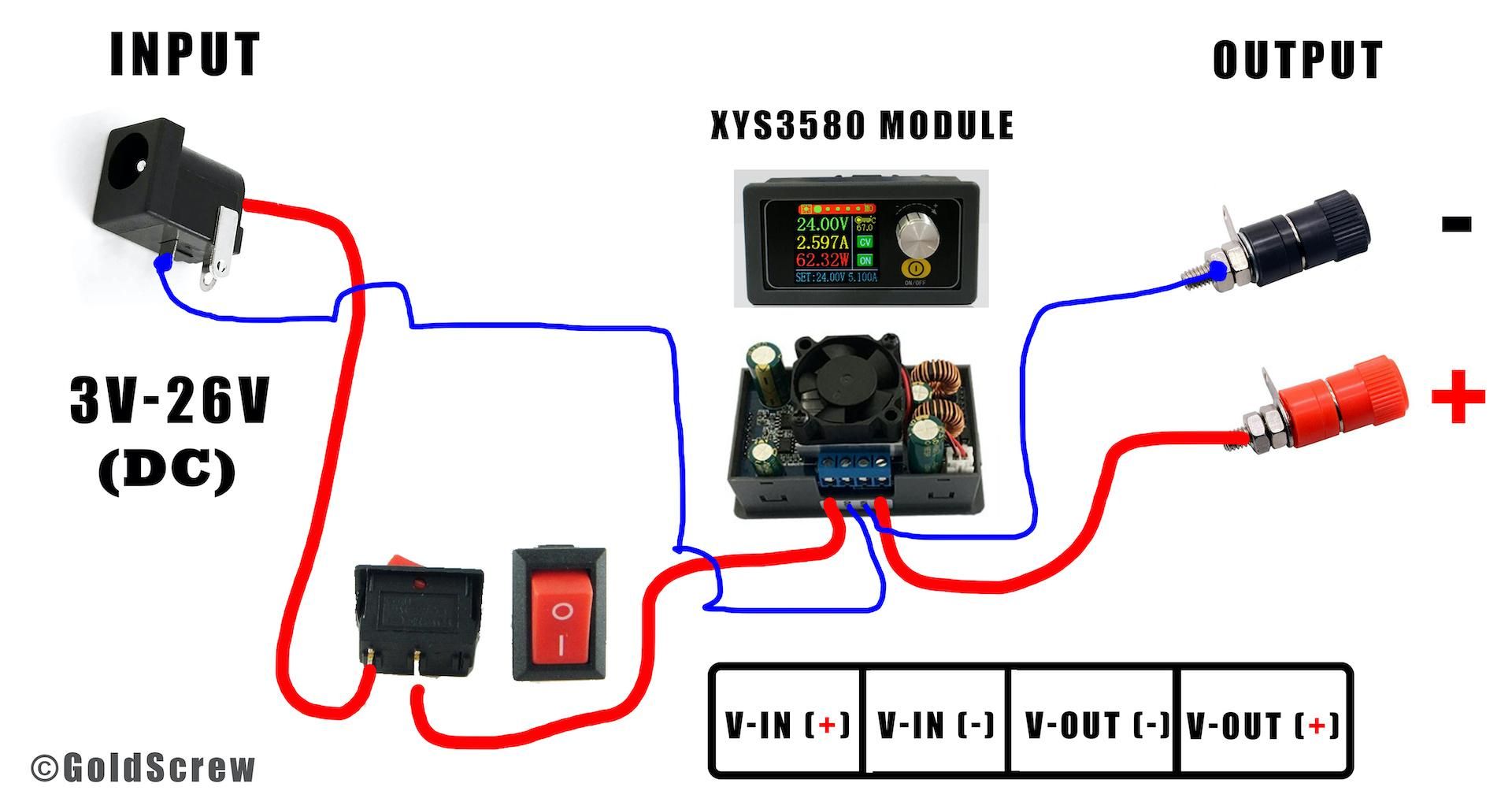

You can using AC Adapter for INPUT (3v-36v DC).

After that, adjustment the Volt/Ampe with module XYS3580 as you want in OUTPUT.

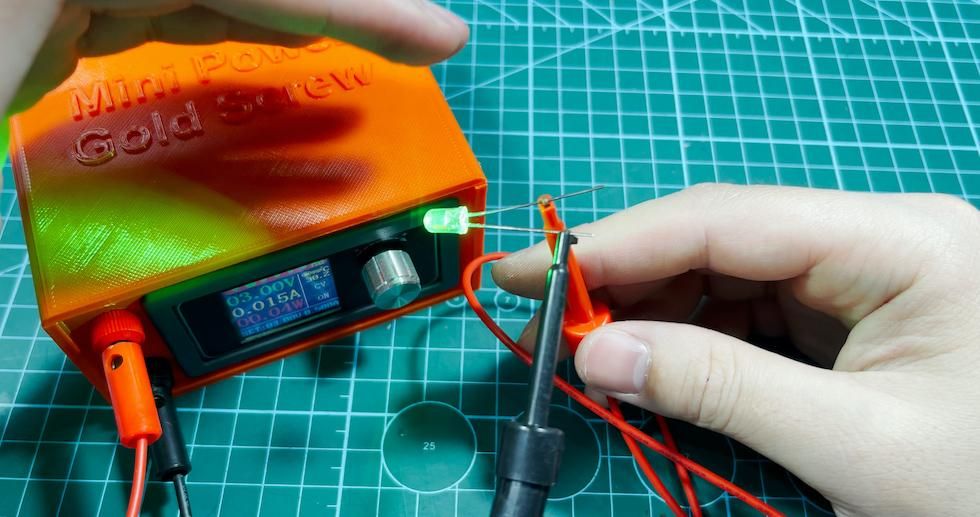

Step 3: Finish & Testing

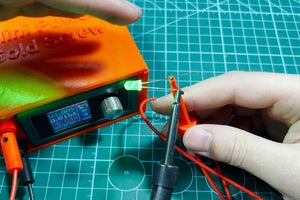

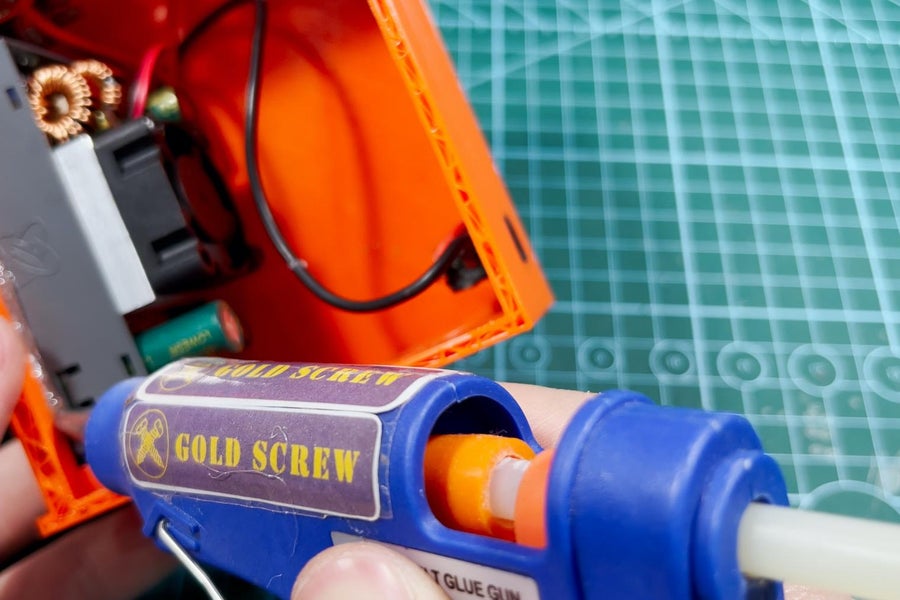

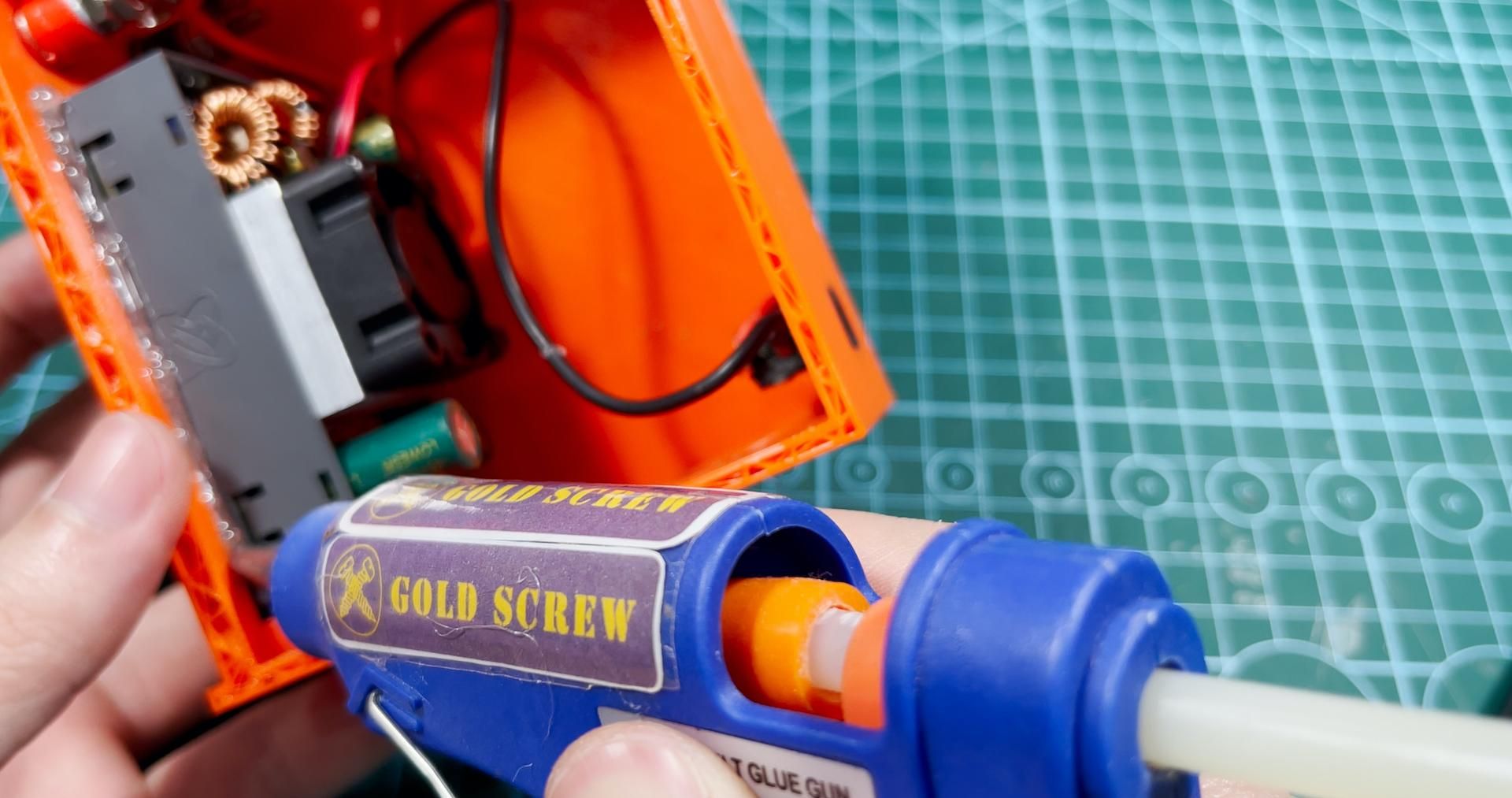

I'm using hot glue to connect the cover (you can using screw, strong glue...or anything as you want), and then quick test it with a green LED (3v).

Hope you enjoy, thanks!
