DIY - Make USB Mini Speaker System With PAM8403 and Cardboard

Today, I will show you how to make USB mini speaker system with PAM8403 amplifier module and Cardboard.

It's very easy with cheap materials.



Step 1: List Components

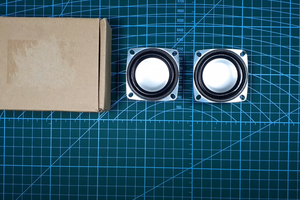

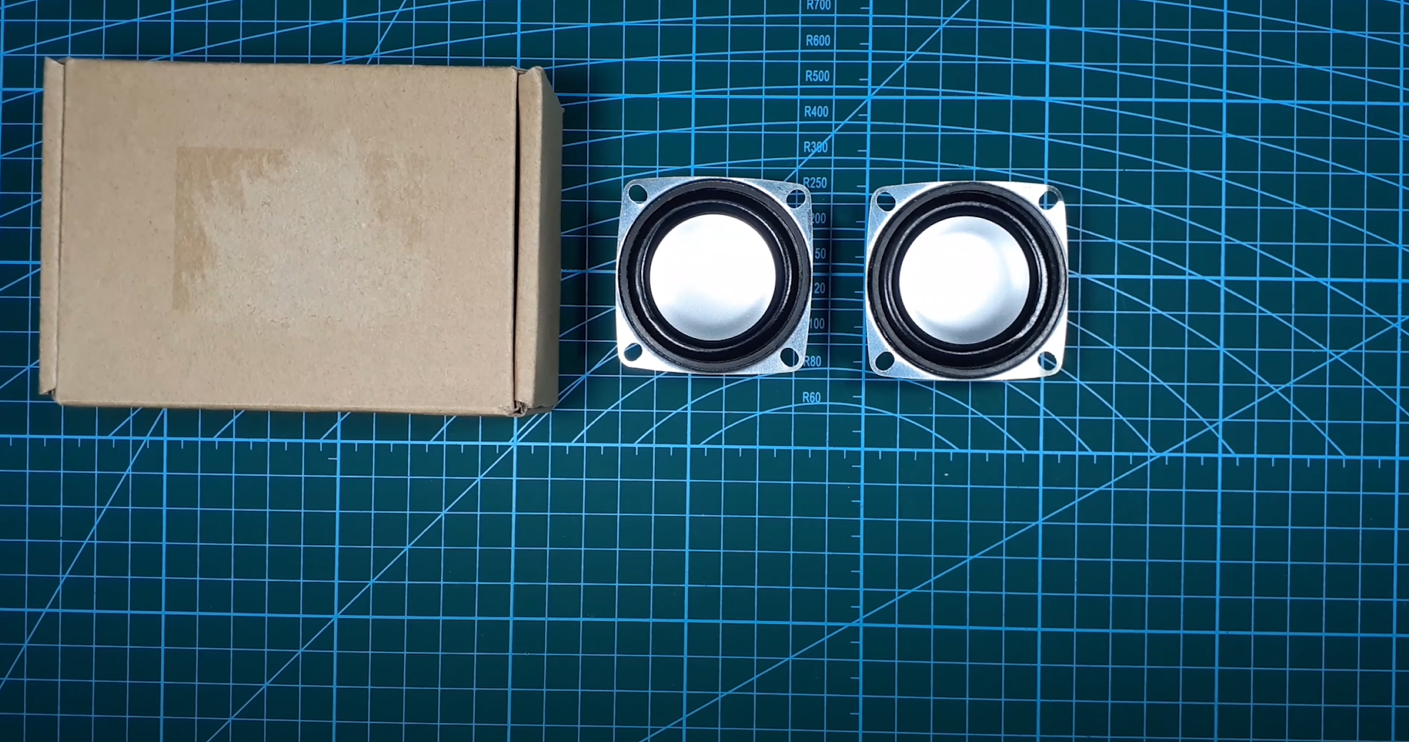

- 2x Speaker 4 Ohm, 3W

Banggood: https://sea.banggood.com/custlink/DvmytPMWda

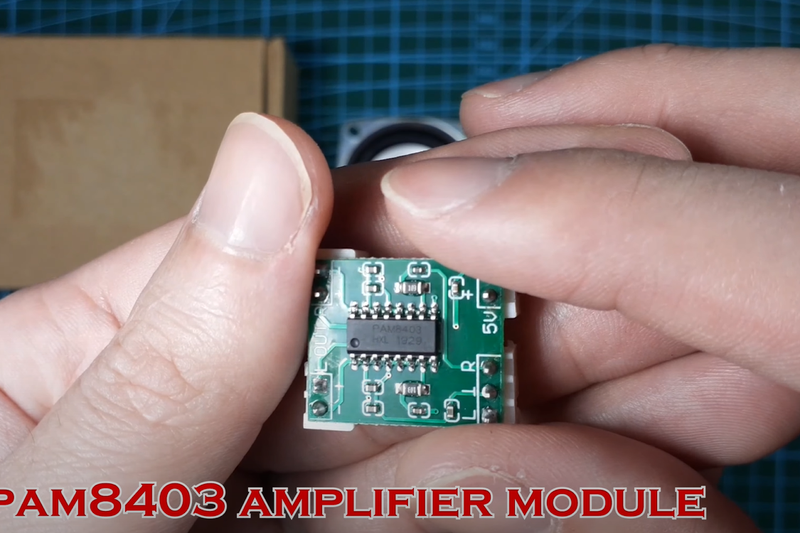

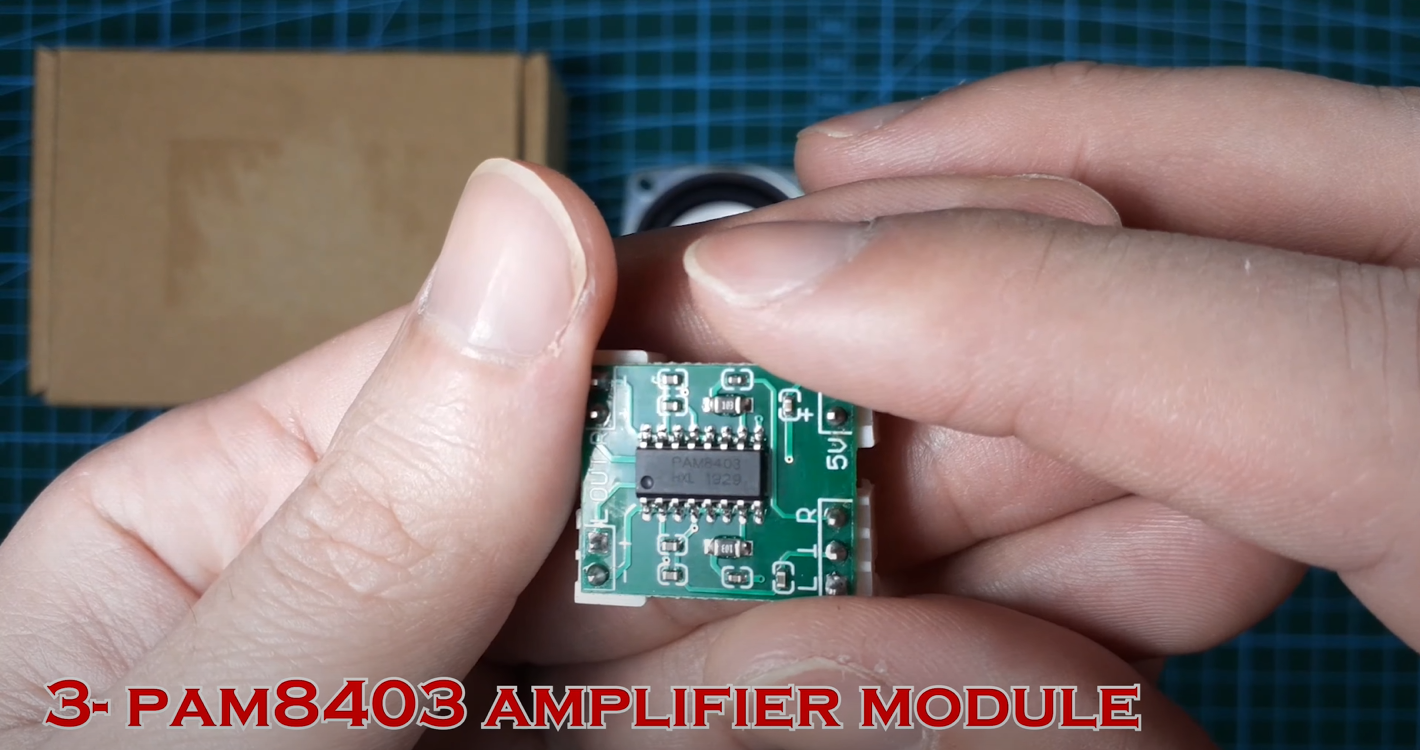

- 01x PAM8403

Banggood: https://sea.banggood.com/custlink/Gv3yPPUJds

- 1x 3.5 Audio jack

Banggood: https://sea.banggood.com/custlink/Gv3yPPUJds

- 1x USB Cable Power

Banggood: https://sea.banggood.com/custlink/Gv3yPPUJds

Step 2: Make Sound Box

Make Sound Box
Make Sound Box
Make Sound Box
Make Sound Box

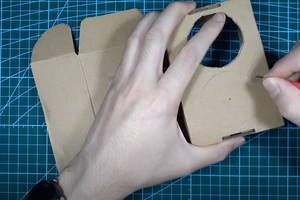

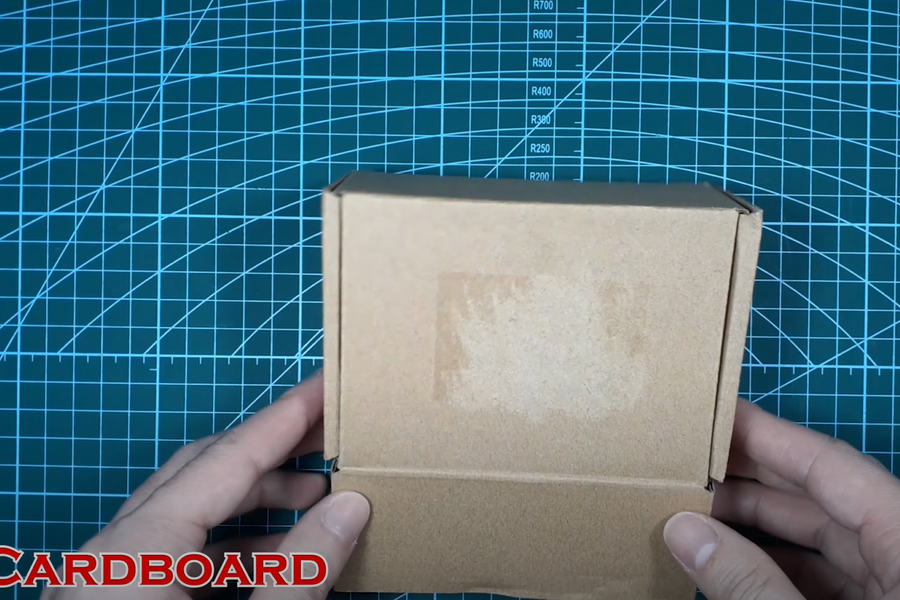

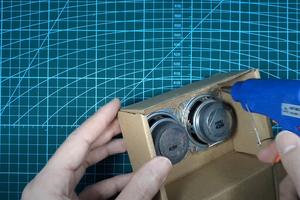

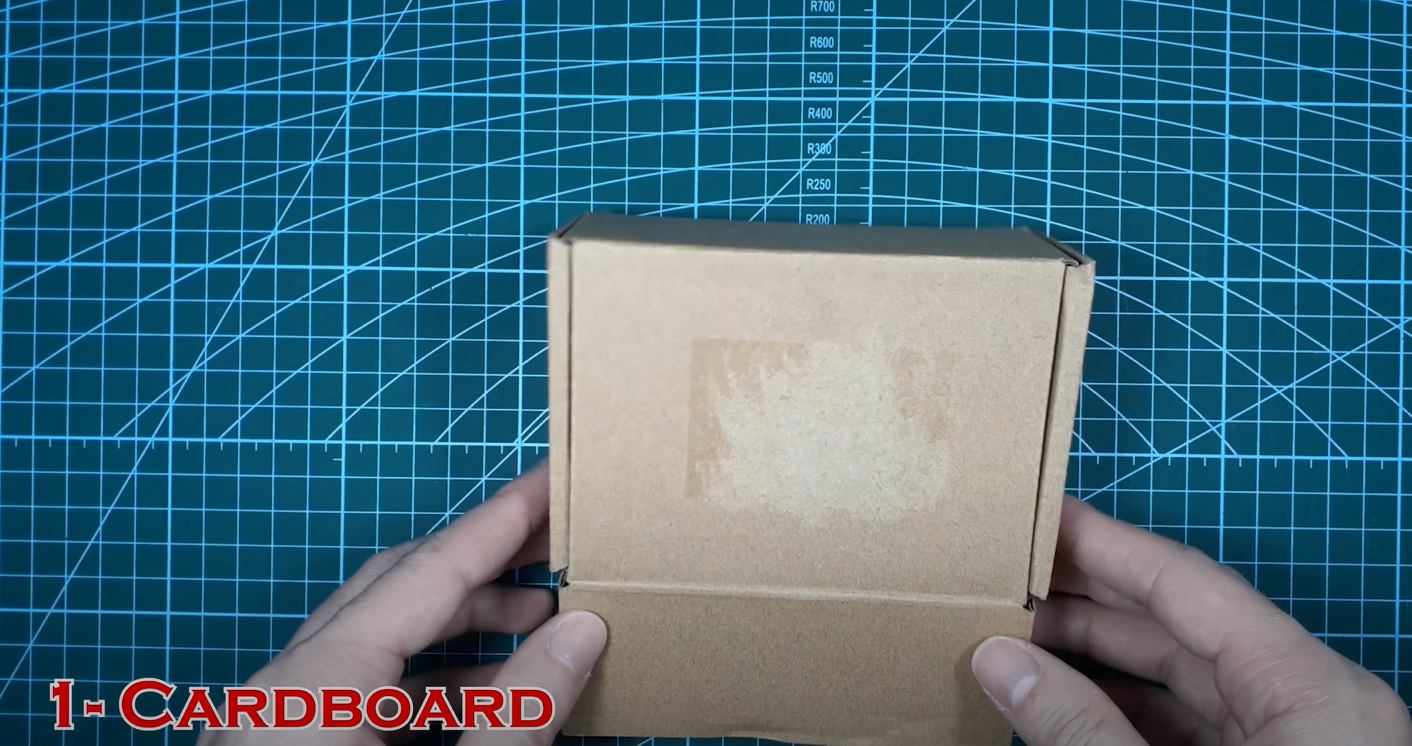

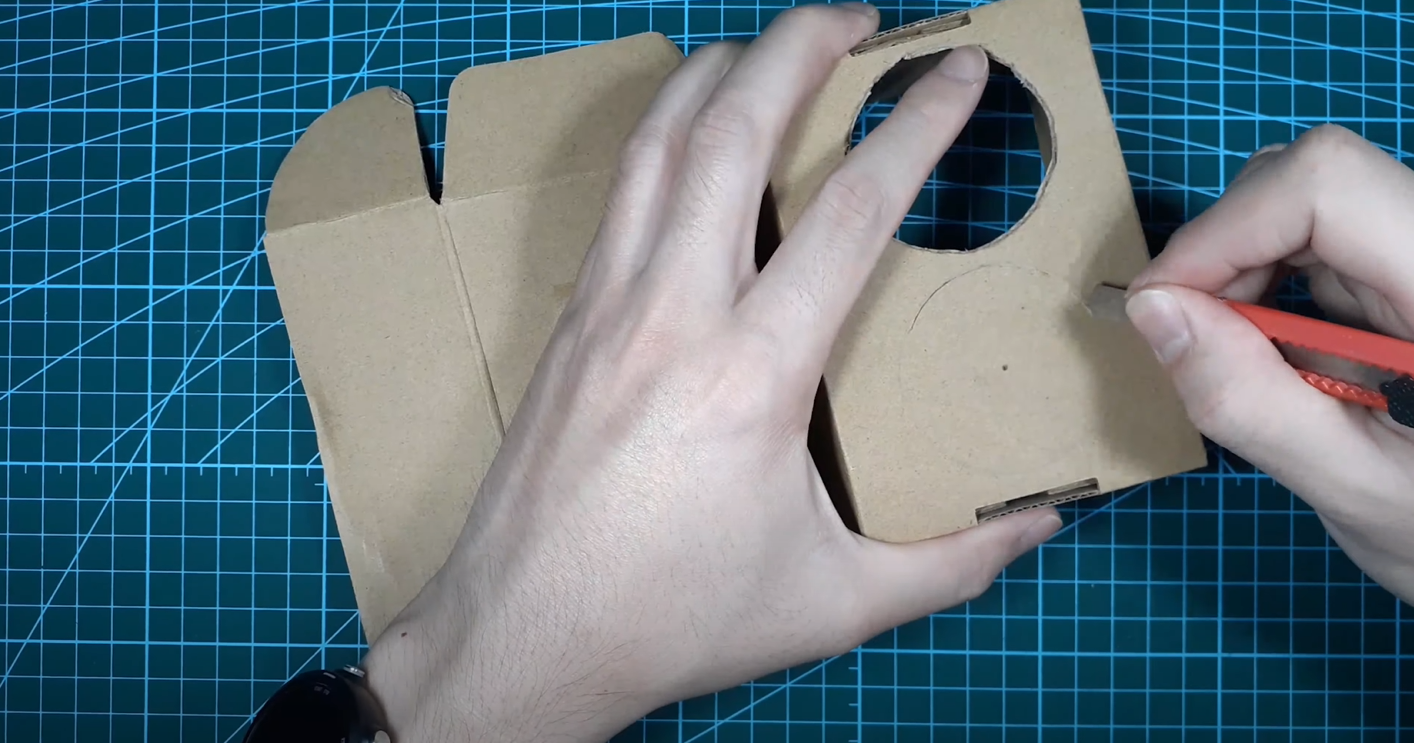

Using a cardboard and make sound box

Step 3: Connecting Speaker and PAM8403

Connecting Speaker and PAM8403
Connecting Speaker and PAM8403
Connecting Speaker and PAM8403
2 More Images

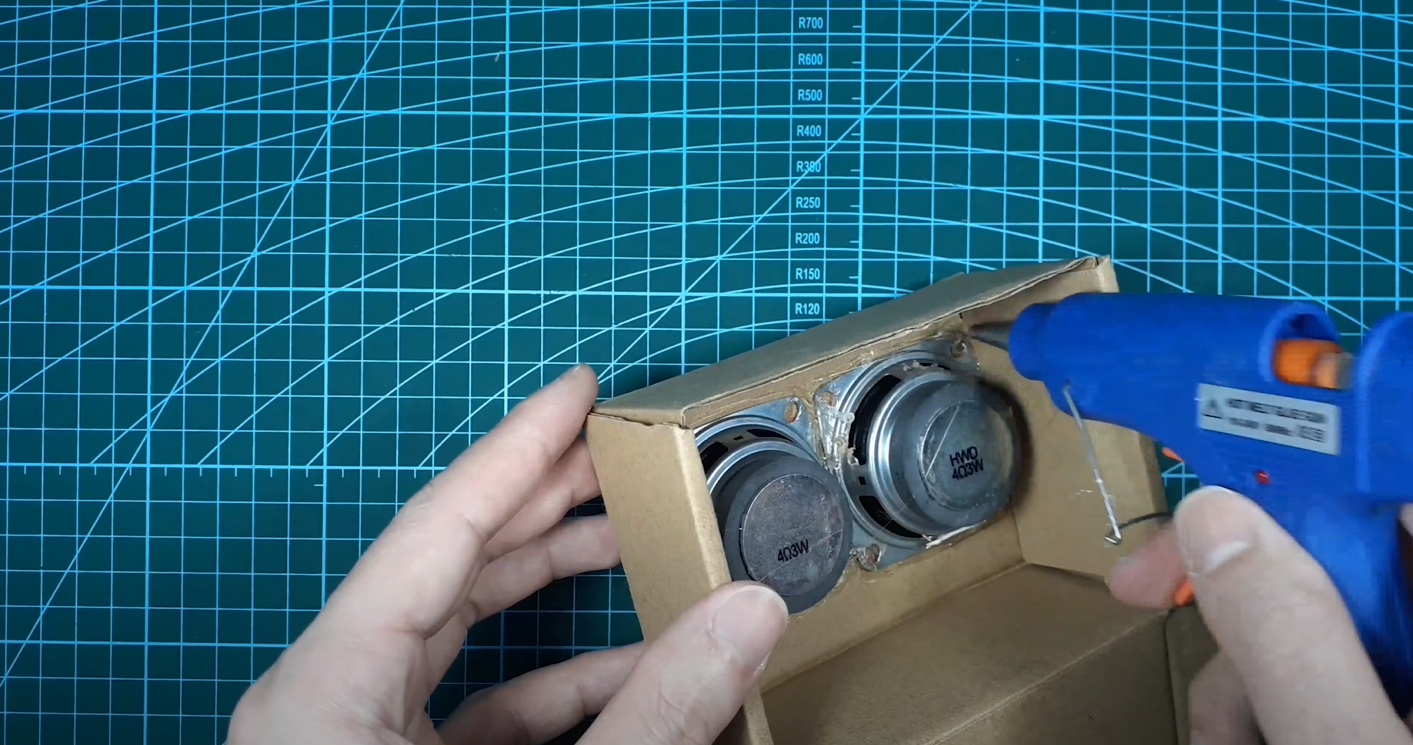

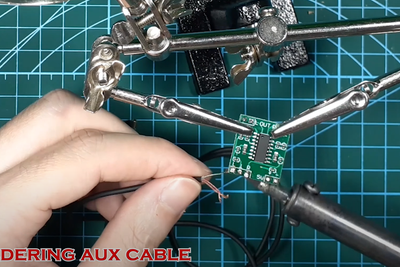

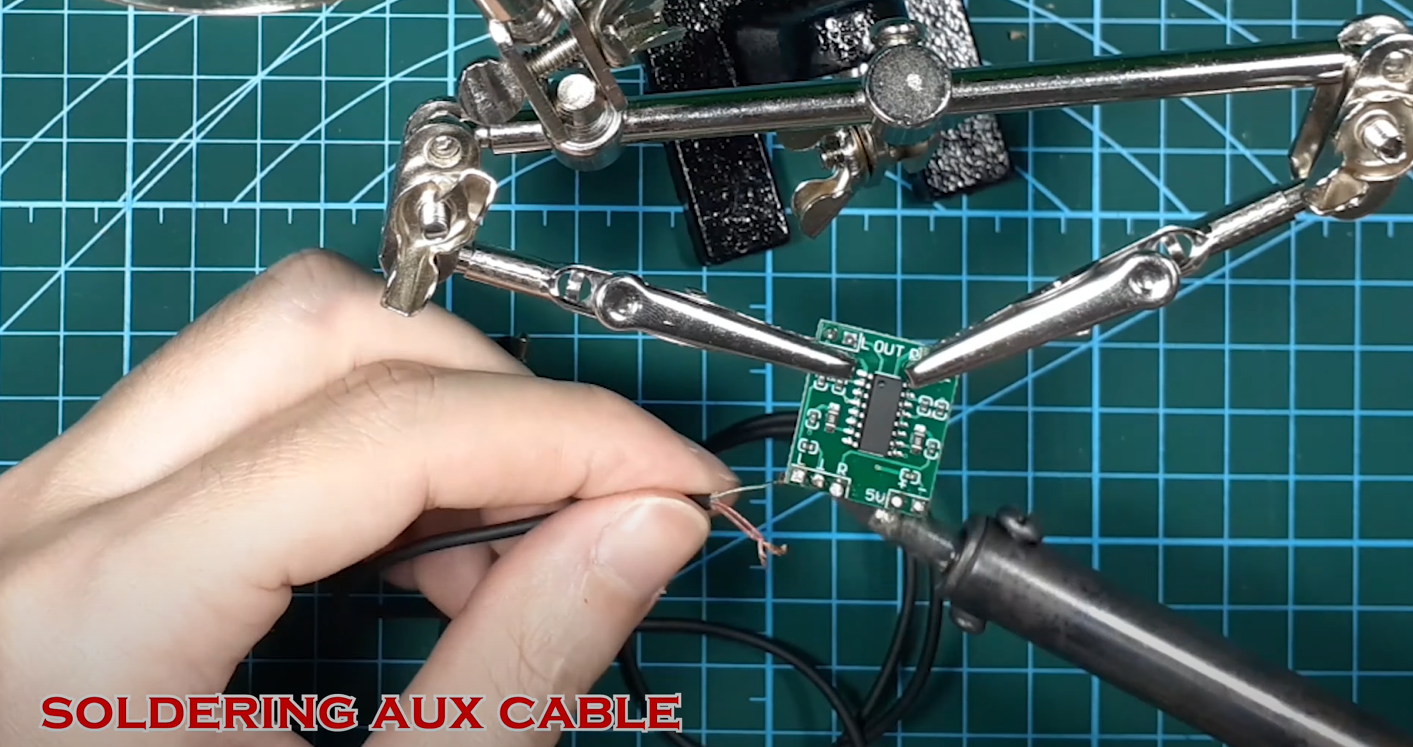

Soldering 2 speakers with PAMP8403 module.

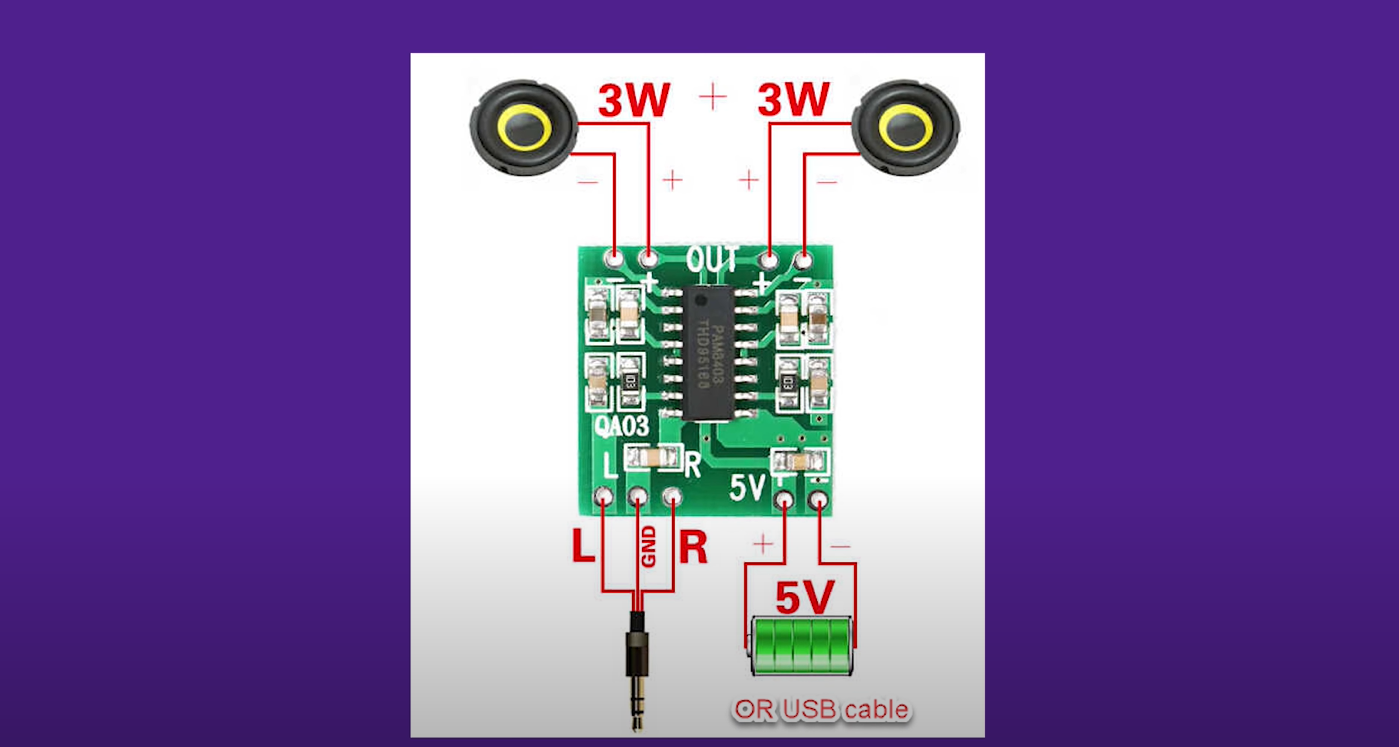

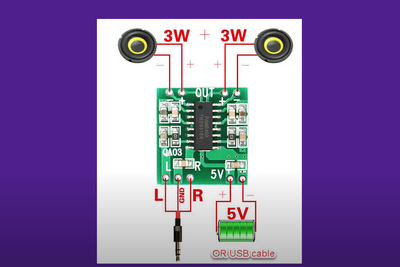

And then connect USB power (+5VDC) to PAMP8403 following diagram like image above.

Step 4: Decorate

Decorate
Decorate
Decorate

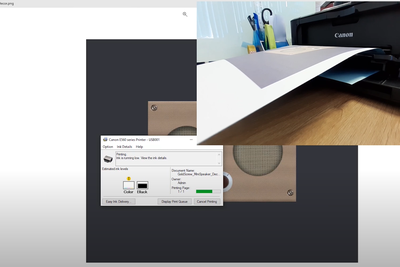

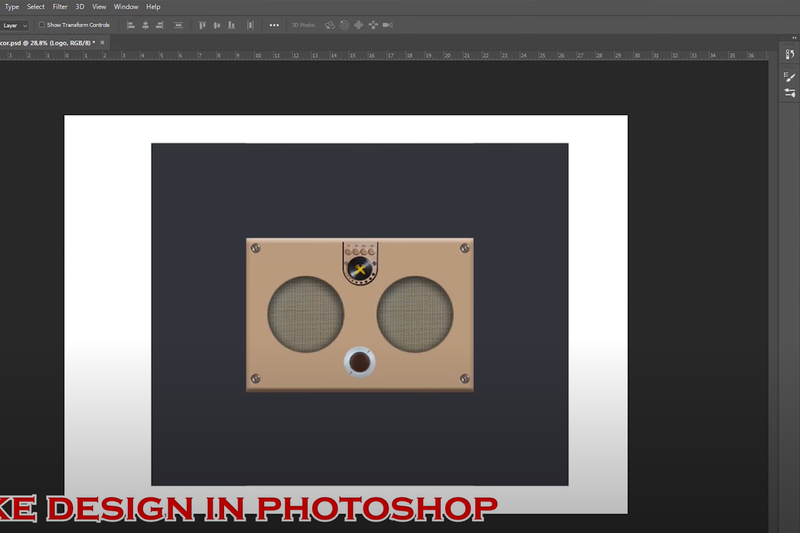

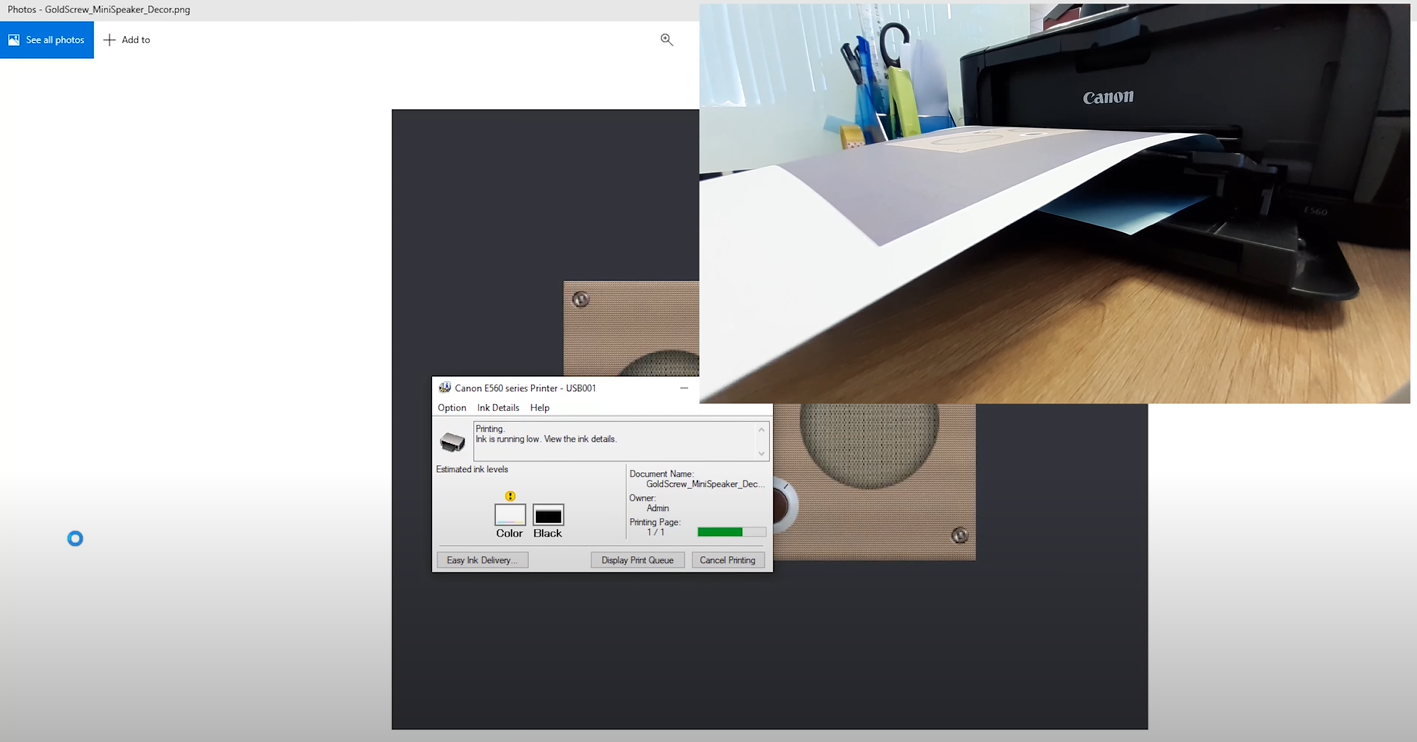

Design in Photoshop and printer it.

Step 5: Done and Test

Done and Test
Done and Test

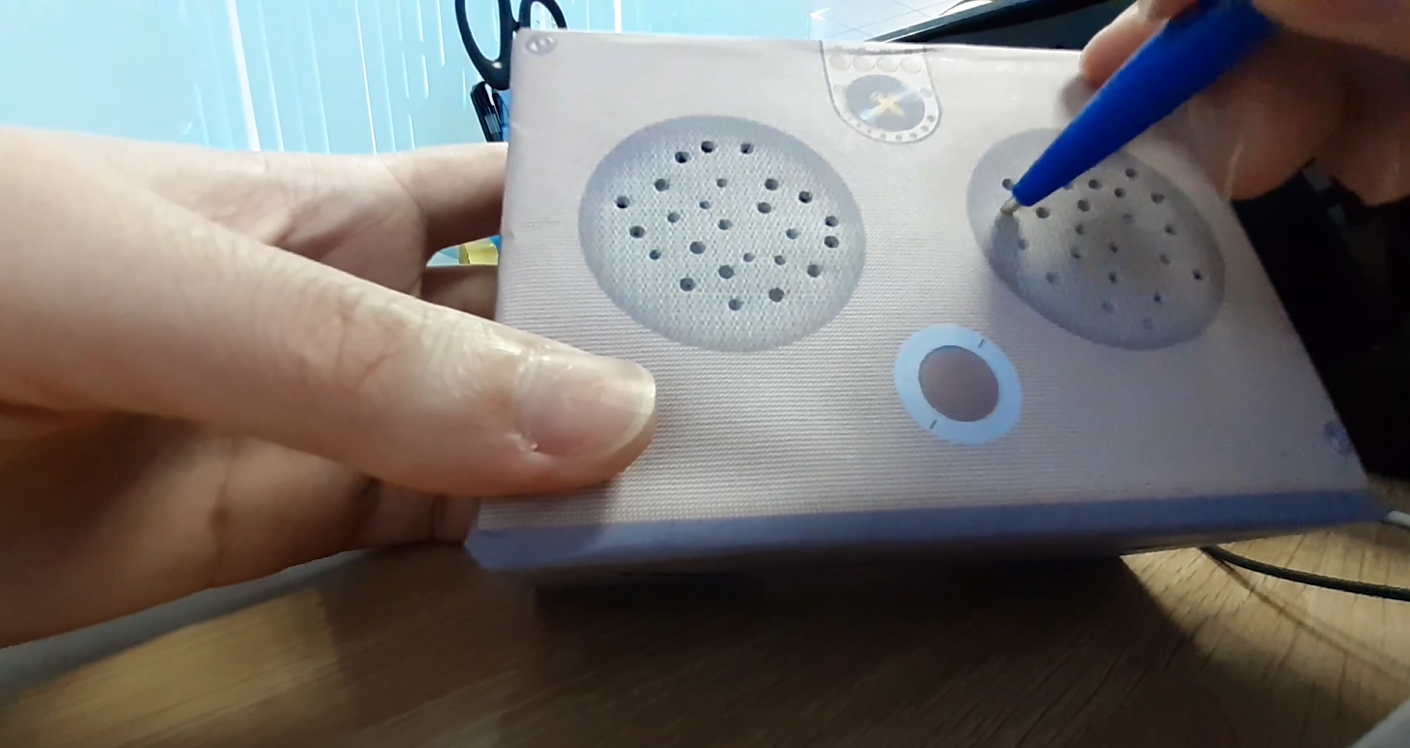

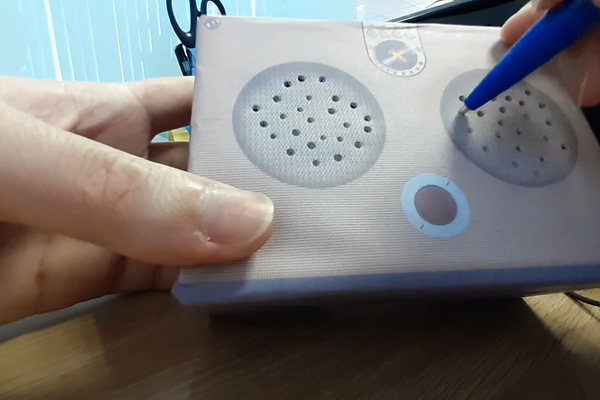

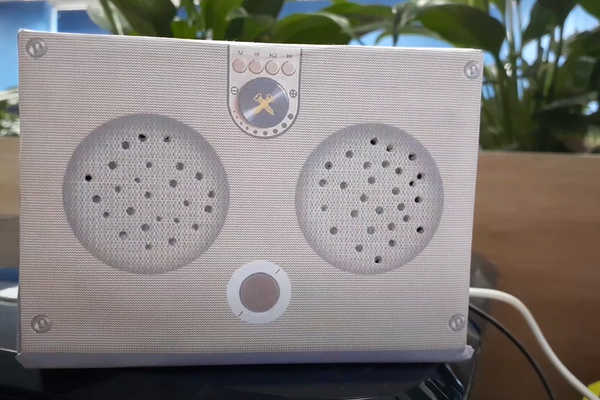

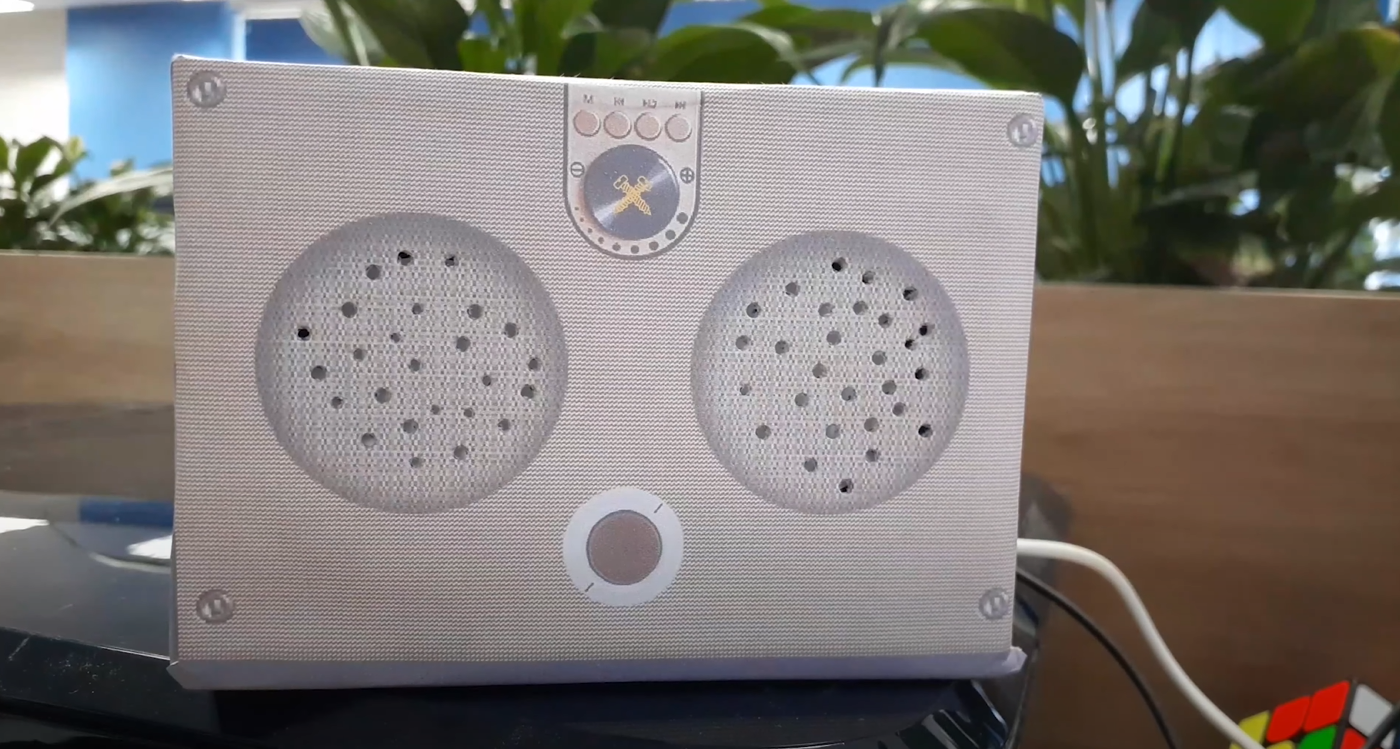

Connect USB power to PC or powerbank and AUX to your PC or mobile phone to play music.

Hope you enjoy.

Thanks!
